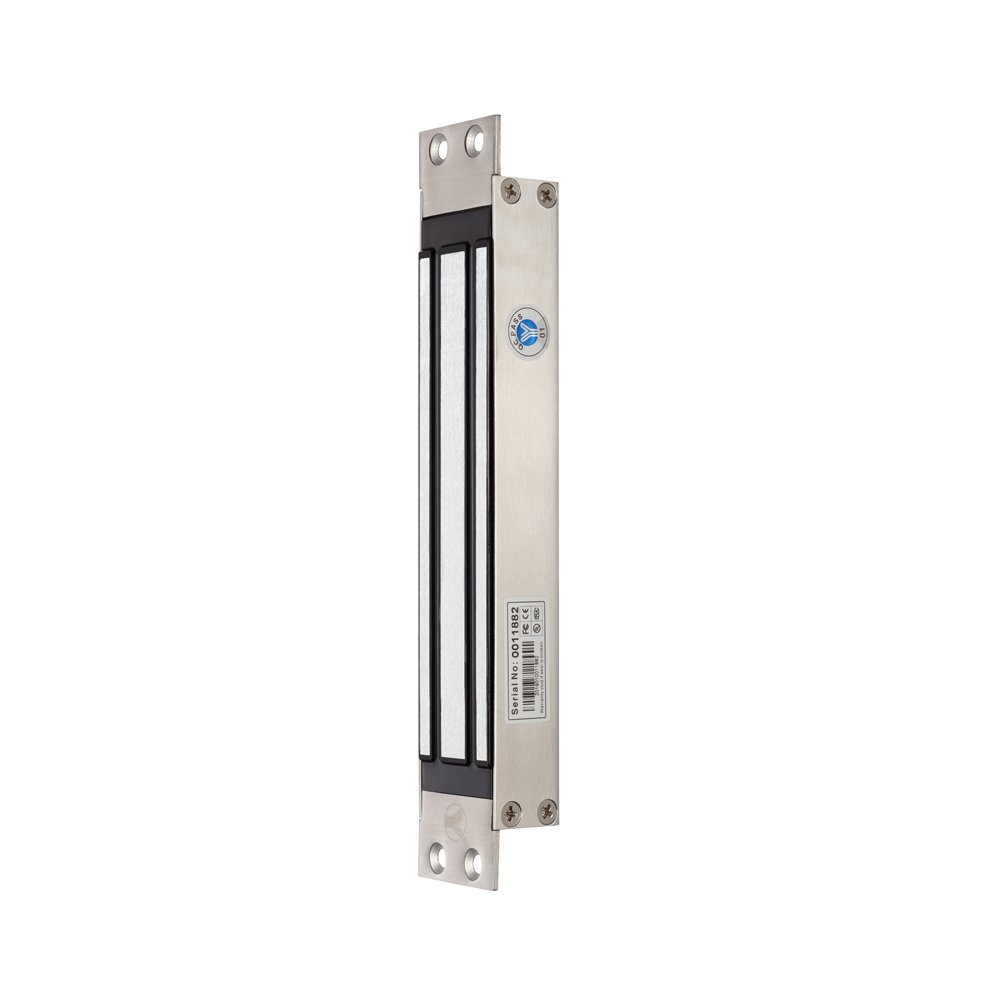

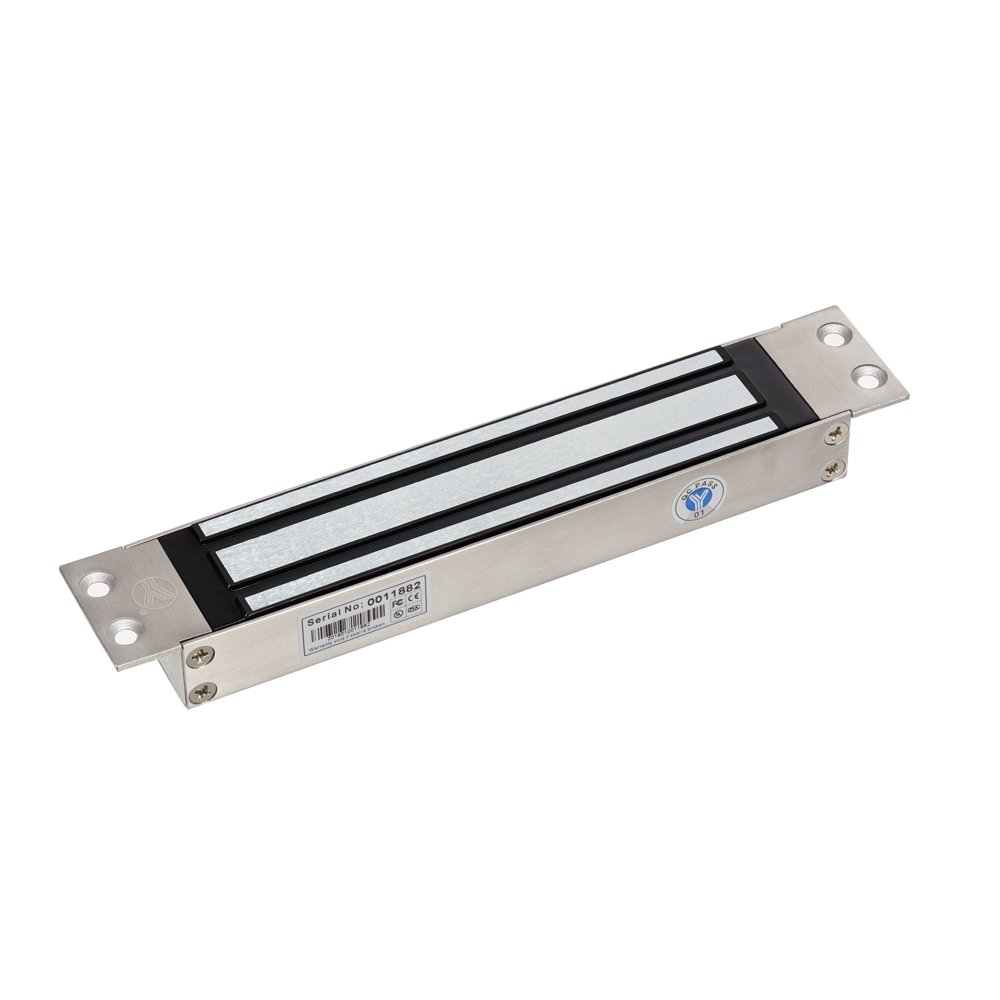

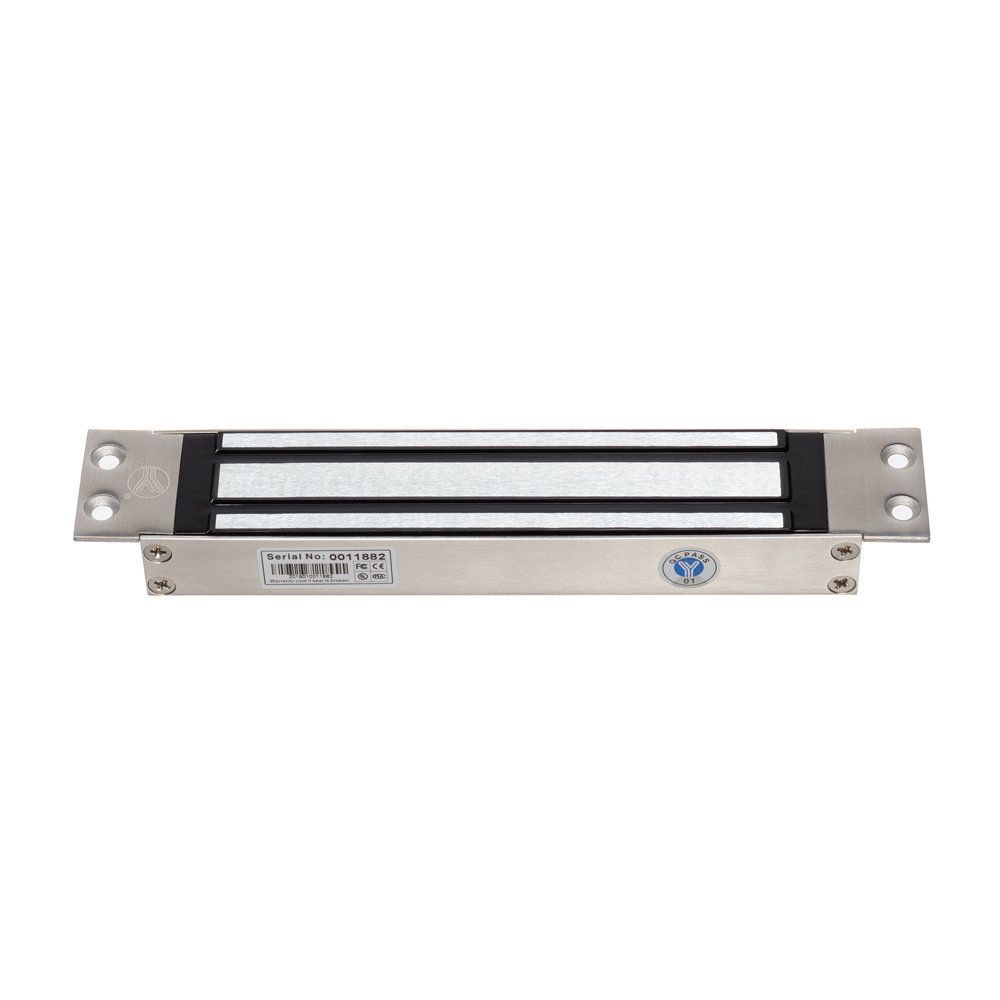

Single Door Magnetic Lock with Signal

signal output magnetic lock for single glass door, wooden door, fireproof door, metal door. Mortise mount and easy installation are reserved . Accessories are available for all kinds of doors.

SKU: YM-280M(SS304)/YM-280M-S(SS304） Categories: ,

Technical Parameter

Size 231.5Lx41Wx26.5H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Holding Force 280kg(600Lbs)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Cover finish Stainless Steel
IP rate IP-65
Operating Temp -20℃~+55℃(-4—131°F)
Weight 2.1kg

Advantage

Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.

Dimension Diagram
