Remote Control

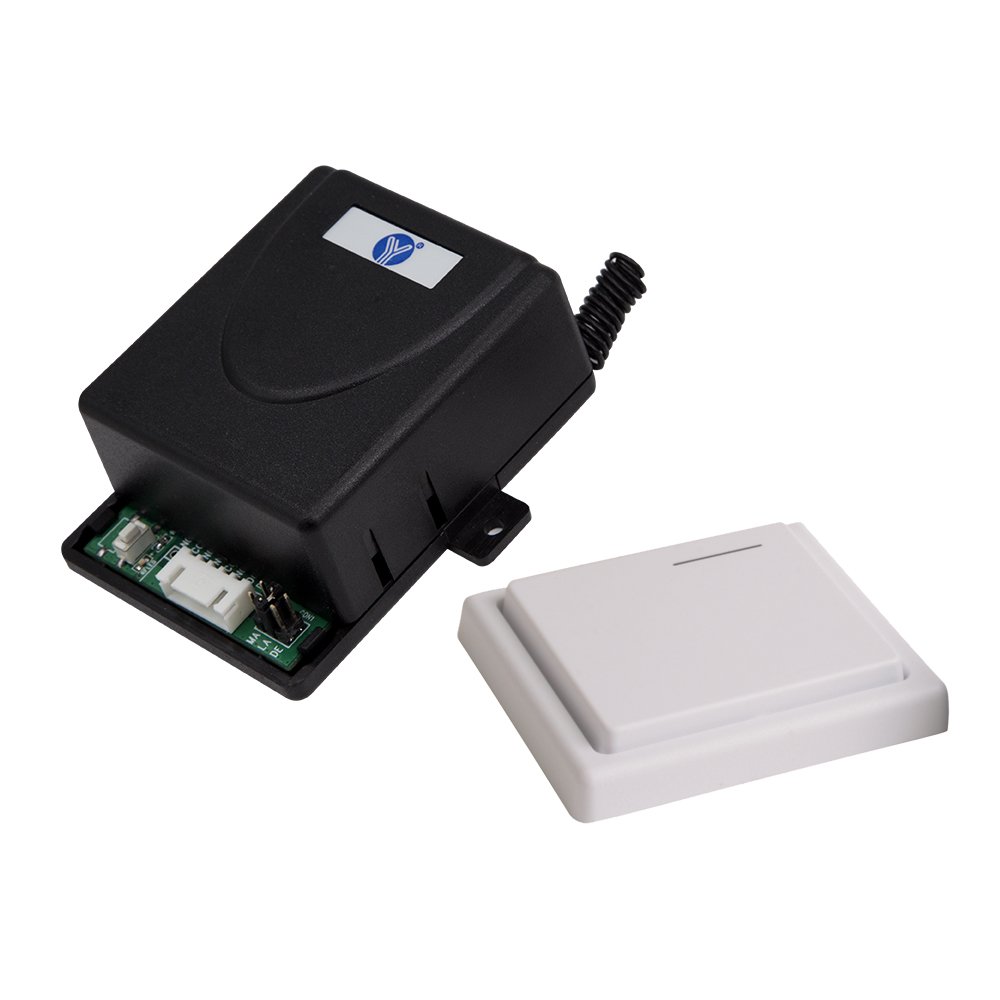

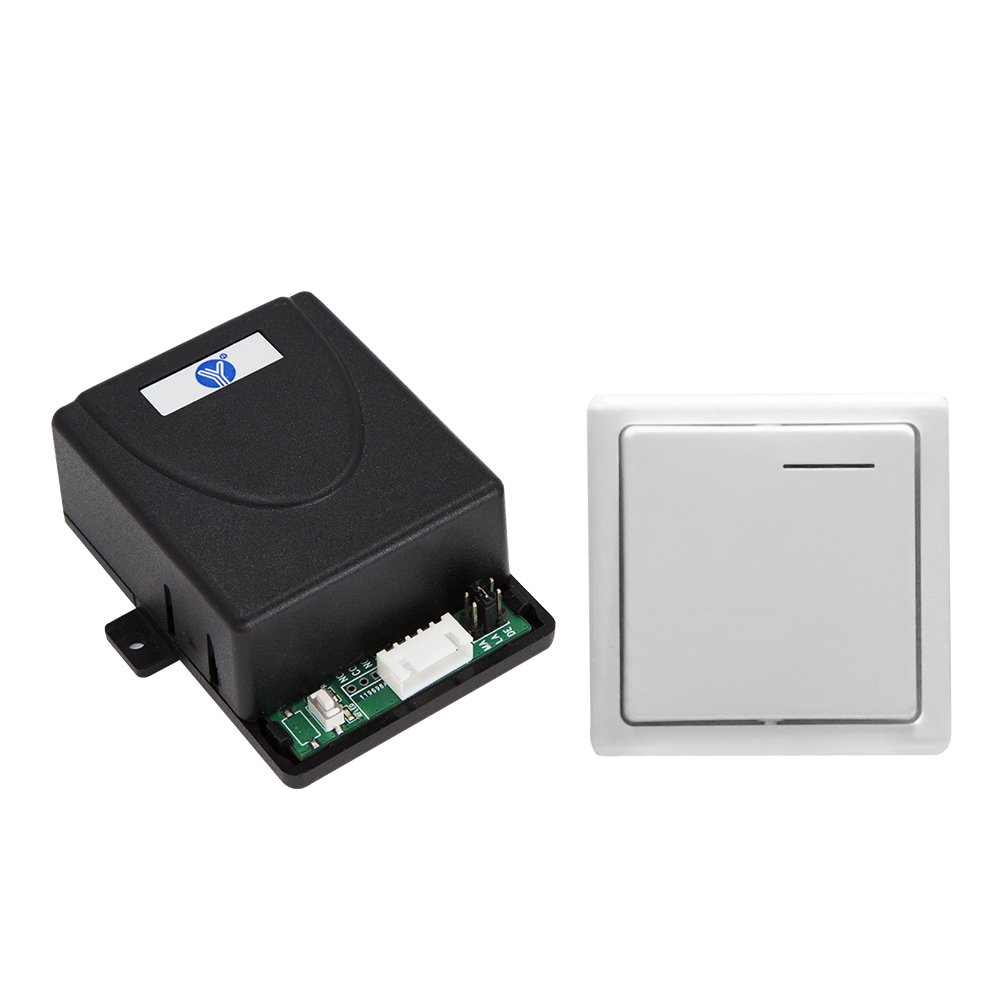

WBK-400RC is the wireless remote controlling switch.with metal transmitter for access control.With NO/NC/ COM Optional Contact Output. It can also penetrate the wall easily and be controlled sensitively. What’s more, it adopts the roll code chip to prevent falsity.

SKU: WBK-400RC Categories: Accessory, Remote Control

Reviews (0)

Technical Parameter

Dimensions	58Lx62Wx30H(mm)
Input	DC12V/24V (Selectable)
Contact Rating	≤20A@14VDC,5A@250VAC
Current	≤10mA @12V
Frequency	315MHz、433MHz(Selectable)
Capacity	30 (learning code)
Operating Temperature	-10℃-+60℃
Operating Sensitivity	≤-105dBm
Transmitting Distance	≥110m
Weight	0.09kg

Advantage

Simple operation, study key for setup
Penetrate into the wall effectively and be controlled sensitively
Delicate and beautiful design with metal transmitter
Adopt roll code chips to prevent falsity
The Best Choice for Access Control
