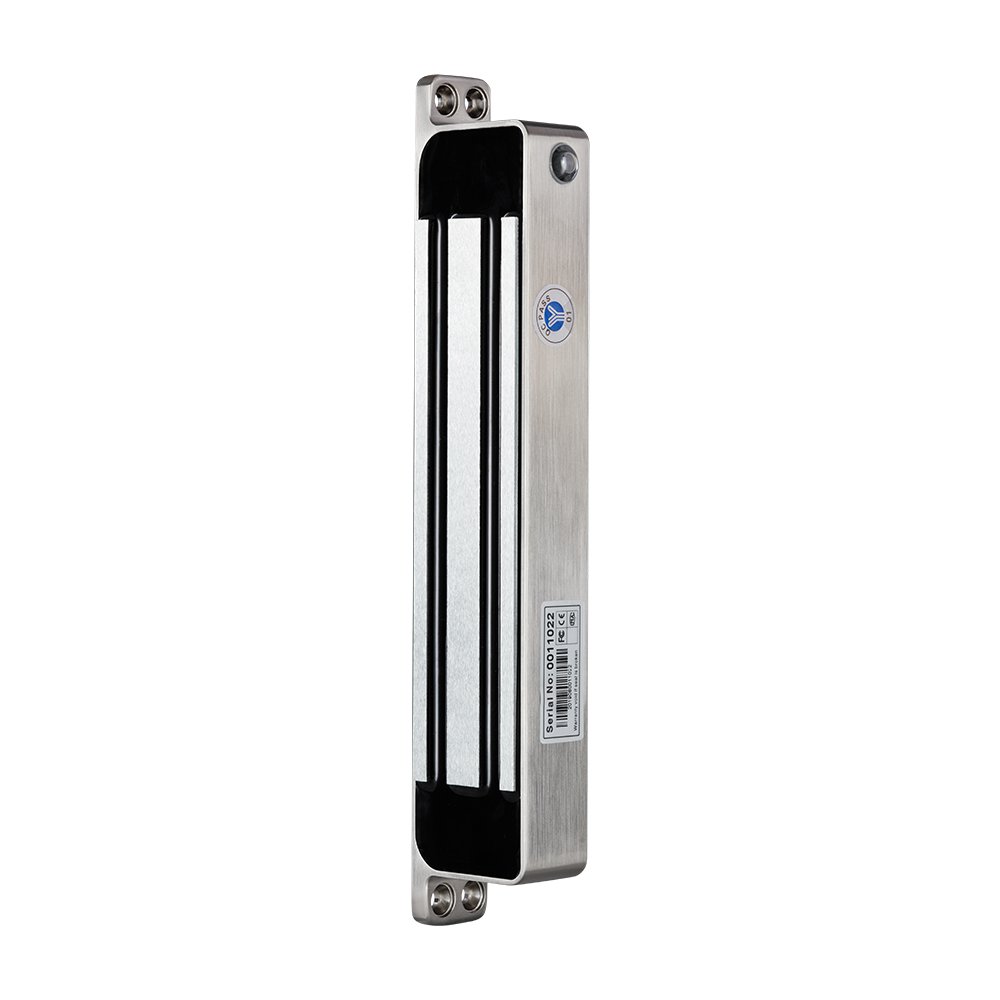

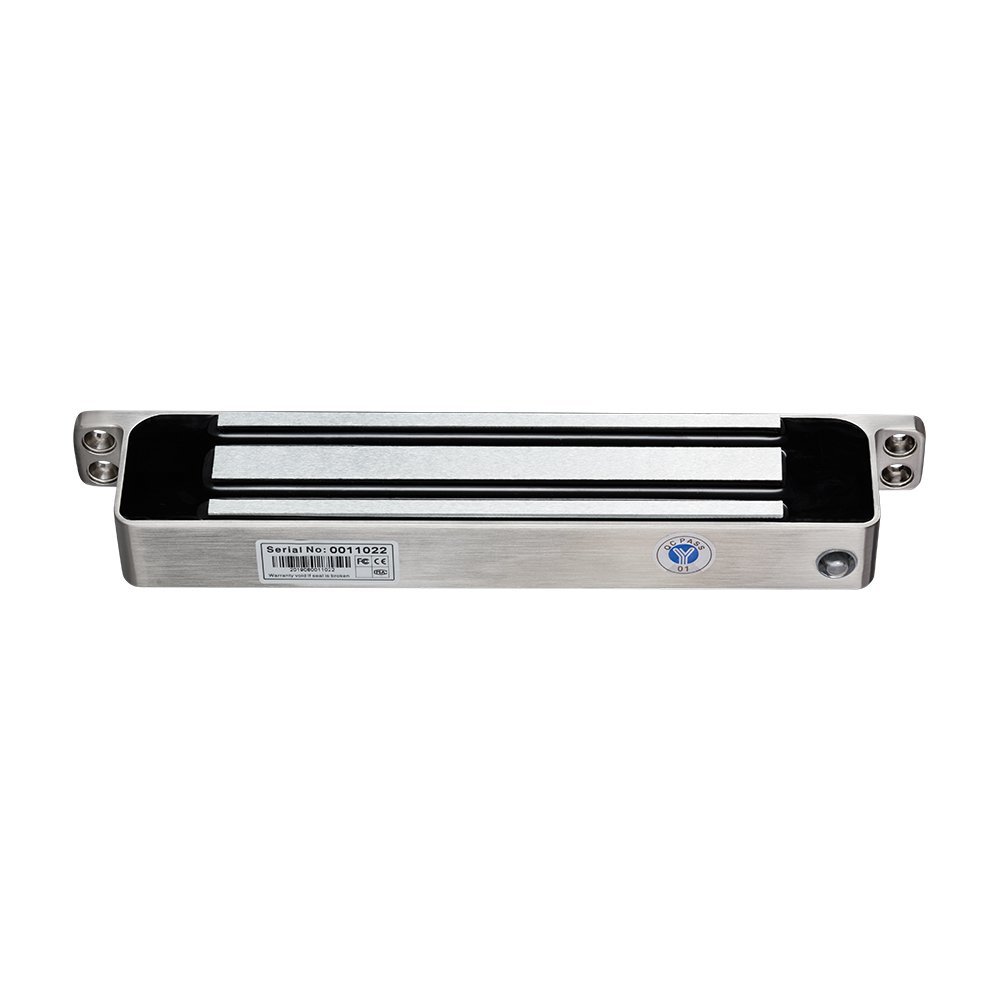

280kg Single Door Magnetic Lock (Portable)

280kg single door magnetic lock .IP-68 waterproof for indoor and outdoor use. The installation is very easy. High anti-impact strength.Dual Voltage 12/24V optional.

SKU: YM-280H(LED) Categories: ,

Technical Parameter

Size 235Lx26.5Wx43H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
Holding Force 280kg(600Lbs)
Signal Output Lock signal(NO/COM)

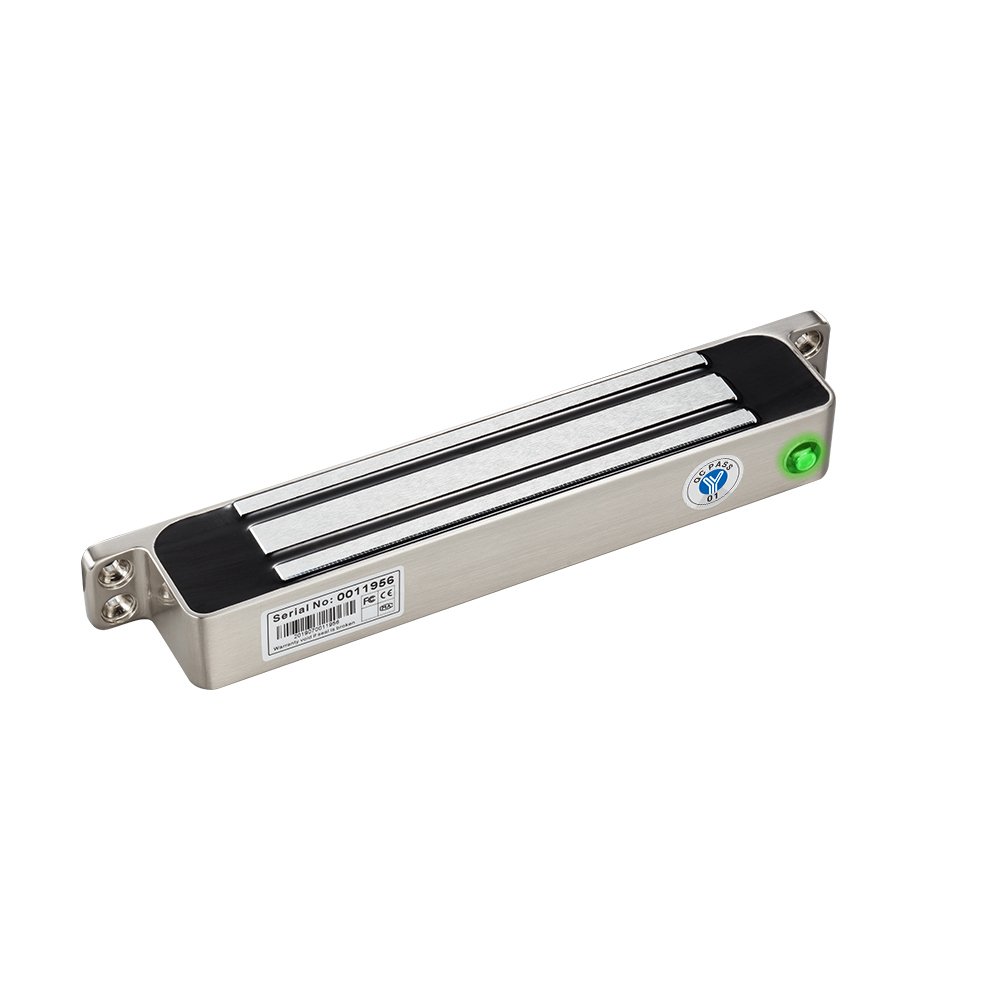

LED Red shows locked ;Green shows unlocked
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~90%(non-condensing)
Waterproof Level IP-68
Weight 2.4kg
Patent Number ZL201620102661X
Certificate MA CE-EMC CE-LVD FCC RoHS REACH WEEE IP68

Advantage

IP-68 waterproof design, for indoor or outdoor use
Dual Voltage 12V/24V DC (optional)
With LED indicator for door status and lock signal output contact
With integrated design, the anti-impact strength is three times higher than the traditional one
The speed of installation is three times faster than the traditional one
Patented product, counterfeiting is not permitted.

Dimension Diagram
