Technical Parameter
| Dimensions | 86Lx86Wx12H(mm) |
| Voltage | 12-24V |
| Current | ≤60mA |
| Output Contact | NO/NC/COM |
| Waterproof Level | IP67 |
| Operating Temp | -20℃~50℃ |
| Standard instruction | Mirror Surface Tempered Glass |
| Current Rating | 1A@30VDC |
| LED Status | Red: Standby Green : Operation |
| Wire color | Red:Positive Black:Negative Yellow:NC White:COM Green: NO |
| Weight | 0.2kg |
| Certificate numbe | ECM 23 ATEX-B DN 89 |
| ATEX | II 1G Ex ib IIC T6 Gb II 2D Ex ib IIIC T85°C /T100°C Db |
Advantage

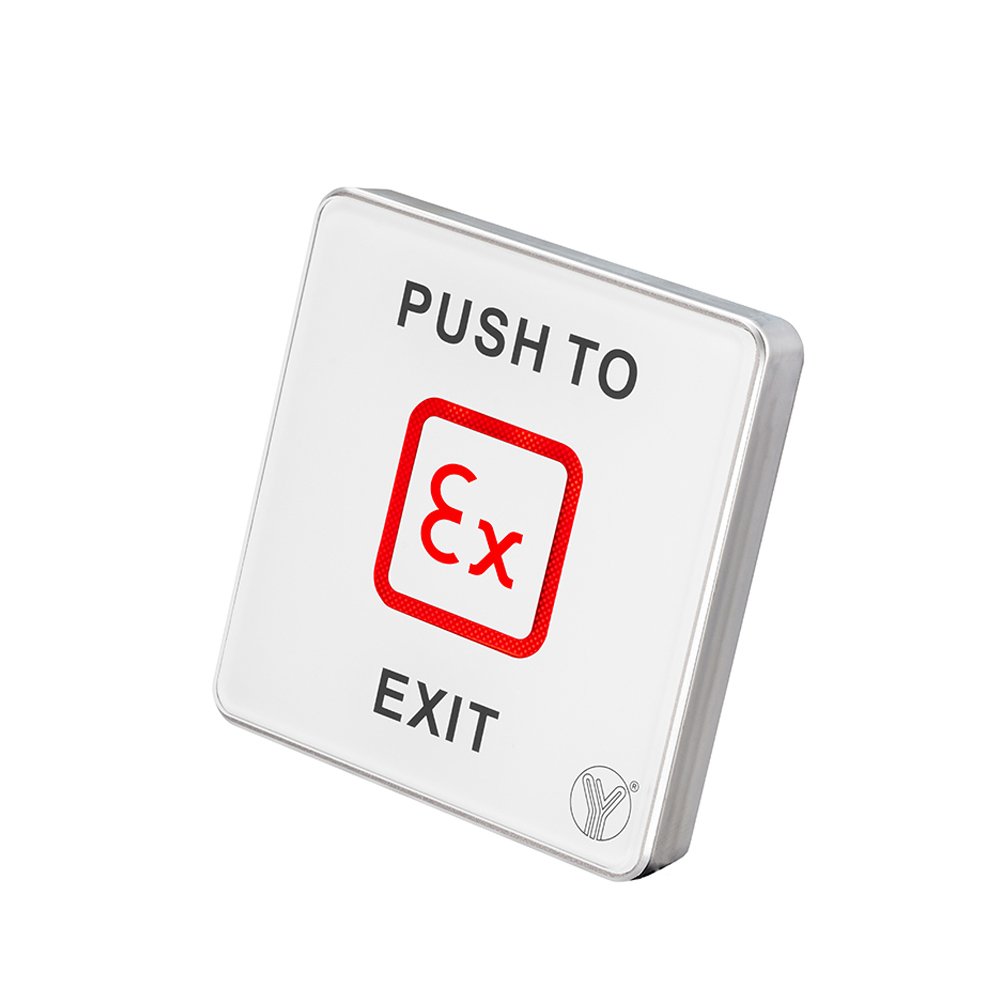

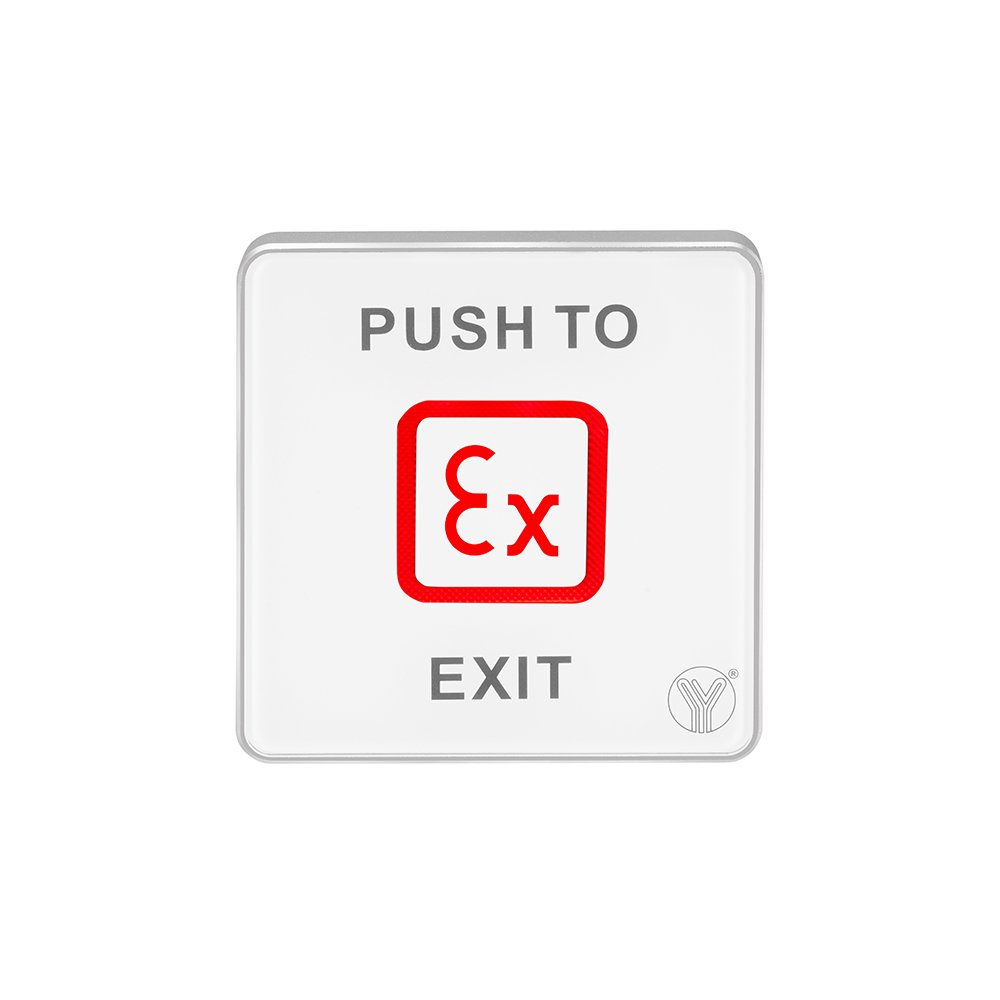

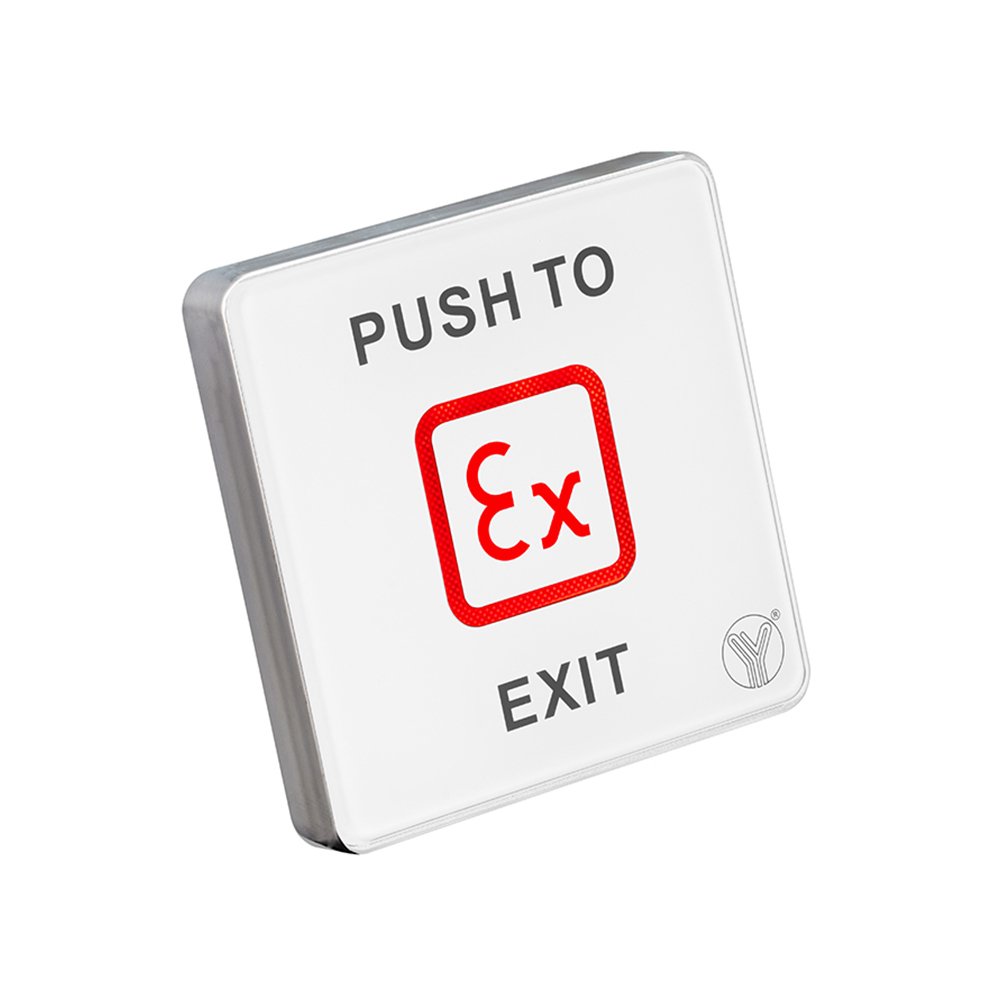

Explosion-proof anticorrosive touch button, with intrinsically safe structure, the housing is made of zinc alloy material by die-casting, the panel is tempered glass material, high strength, beautiful appearance, with corrosion resistance, impact resistance, good thermal stability
Dimension Diagram
