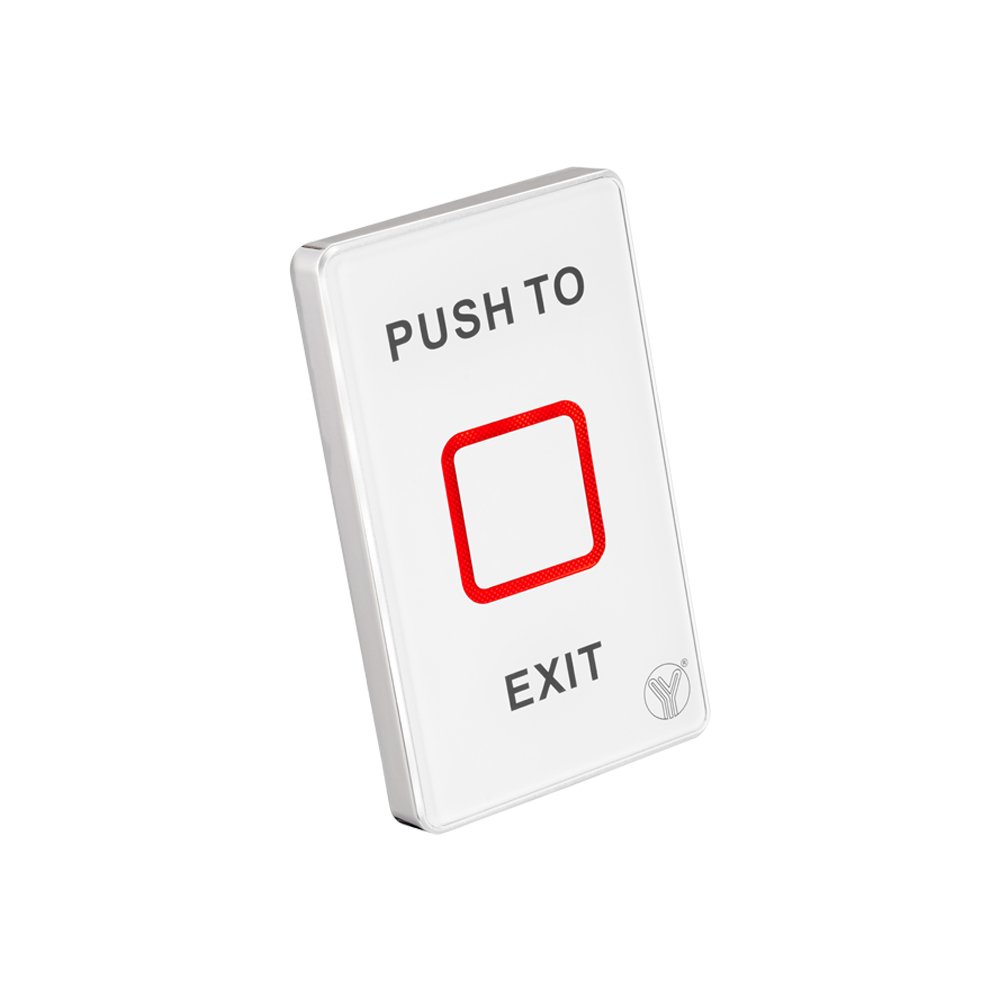

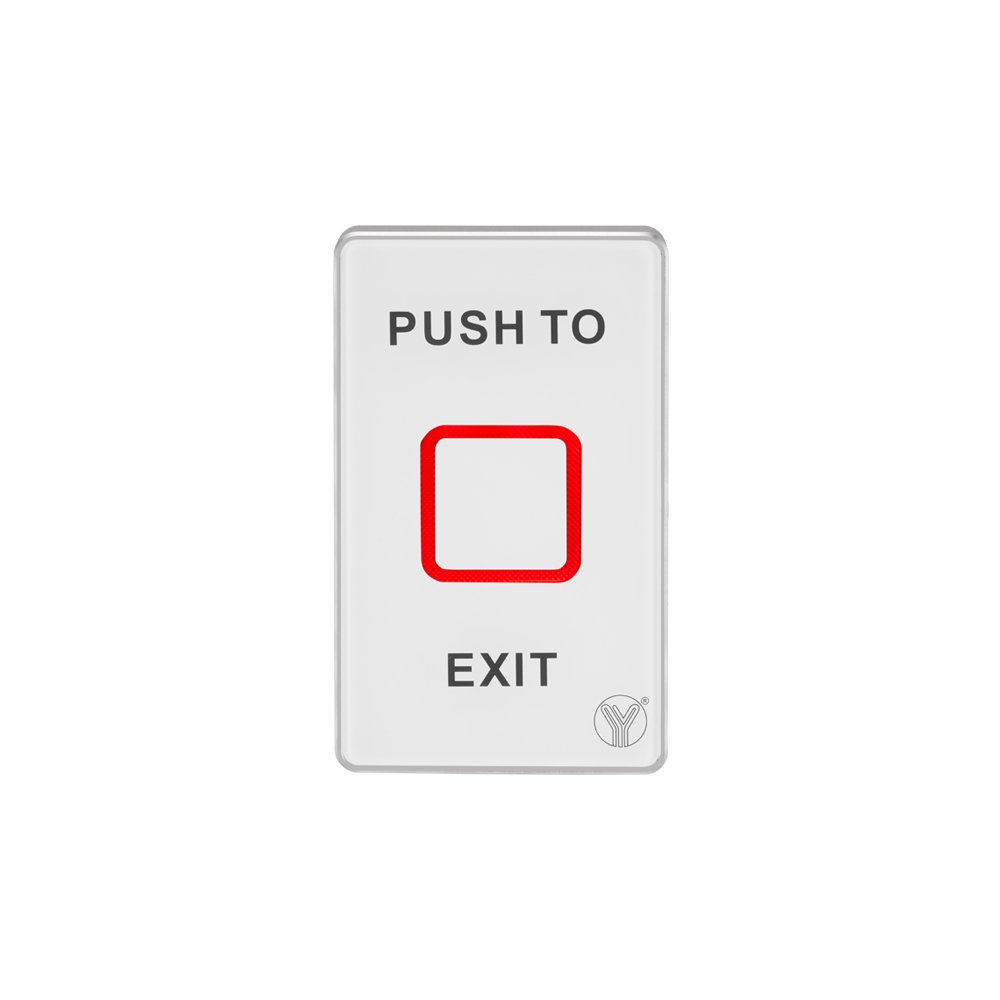

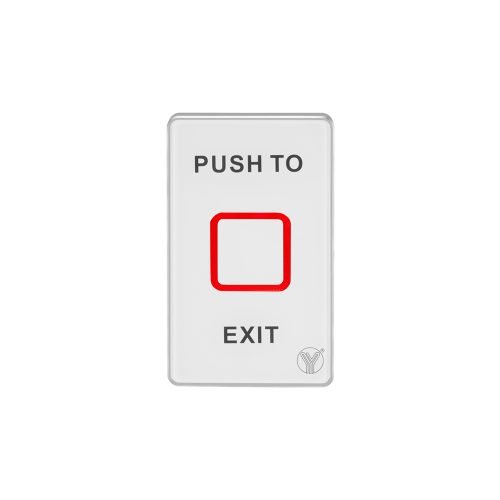

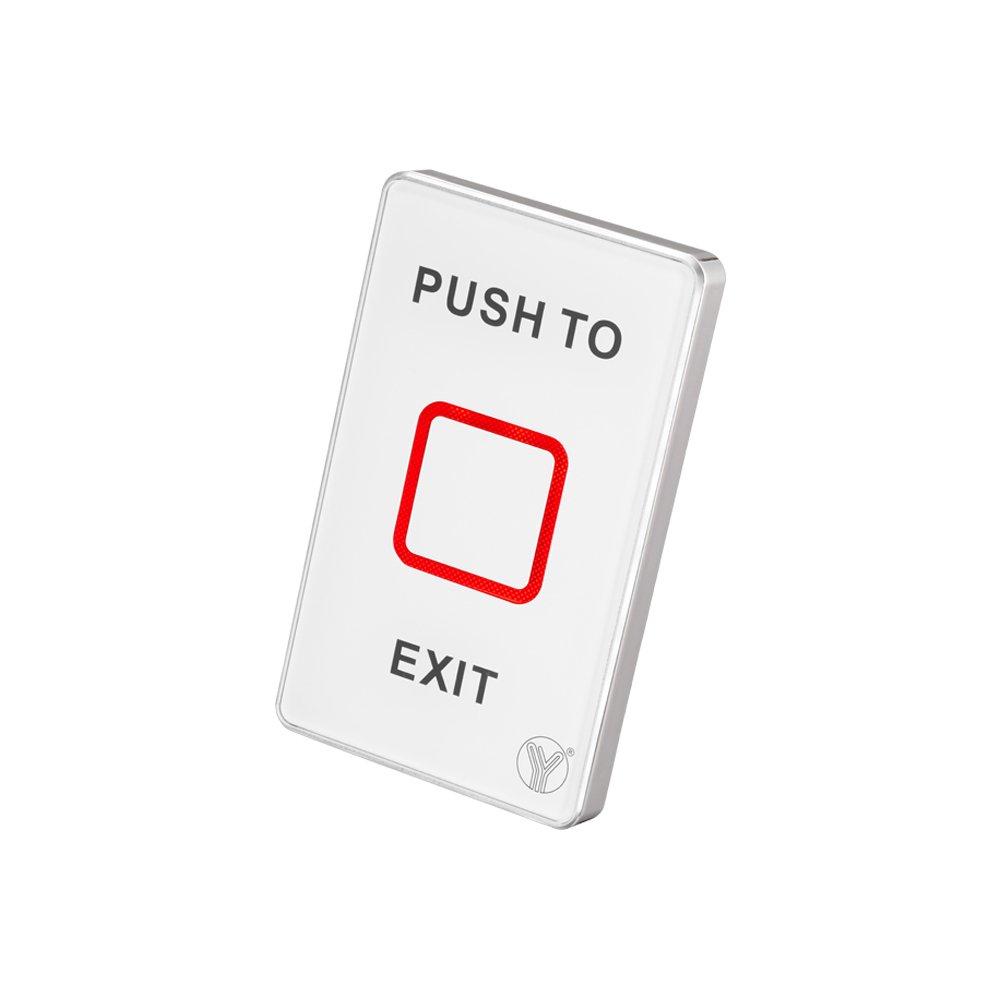

Touch Exit Button

TSK-830NC(LED) ia a Touch Exit Button with LED, with Luxury , Fashion,Trend ,Technology design.

SKU: TSK-830NC(LED) Categories: Exit Button, Touch Button

Reviews (0)

Technical Parameter

Dimensions	114Lx70Wx12H(mm)
Voltage	12-24V
Current	≤60mA
Output Contact	NO/NC/COM
Operating Temp	-20℃～50℃
Standard instruction	Mirror Surface Tempered Glass
Current Rating	1A@30VDC
LED Status	Red: Standby Green : Operation
Wire color	Red:Positive / Black:Negative / Yellow:NC / White:COM / Green: NO
Weight	0.2kg
Certificate	CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Piezoelectric Design, No Mechanical Fault
LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
Special Design for Top Grade Office , Best Choice for Sophisticated group

Dimension Diagram
