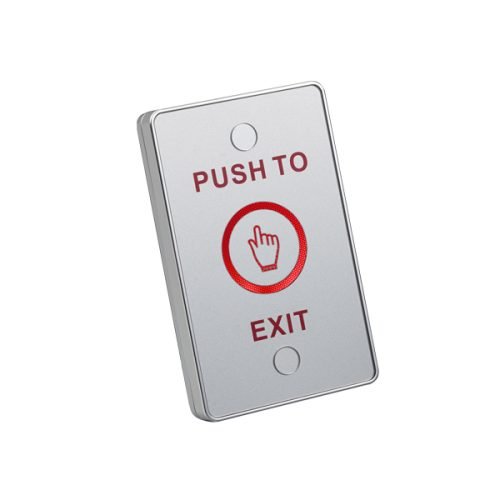

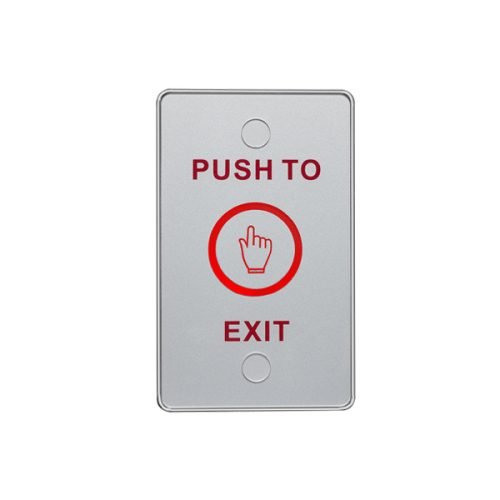

Touch Exit Button

TSK-830A(LED) ia a Touch Exit Button with LED, in size of 114Lx70Wx16H(mm), with Luxury , Fashion,Trend ,Technology design.

SKU: TSK-830A(LED) Categories: Exit Button, Touch Button

Reviews (0)

Technical Parameter

Dimensions	114Lx70Wx16H(mm)
Voltage	DC12-24V
Current	Standby 30mA,Operation: 70mA
Output Contact	NO/NC/COM
Current Rating	1A@30VDC 0.5A@125VDC
LED Status	Red: Standby Green : Operation
Wire color	Red:Positive/Black:Negative/Yellow:NC/White:COM/Green: NO
Color	Silver
Weight	0.12kg
Certificate	CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Piezoelectric Design, No Mechanical Fault
LED Transformation ,Advanced Fashion& Technology, Smooth Surface with glass, Beauty Design with high fashion
Special Design for Top Grade Office , Best Choice for Sophisticated group

Dimension Diagram
