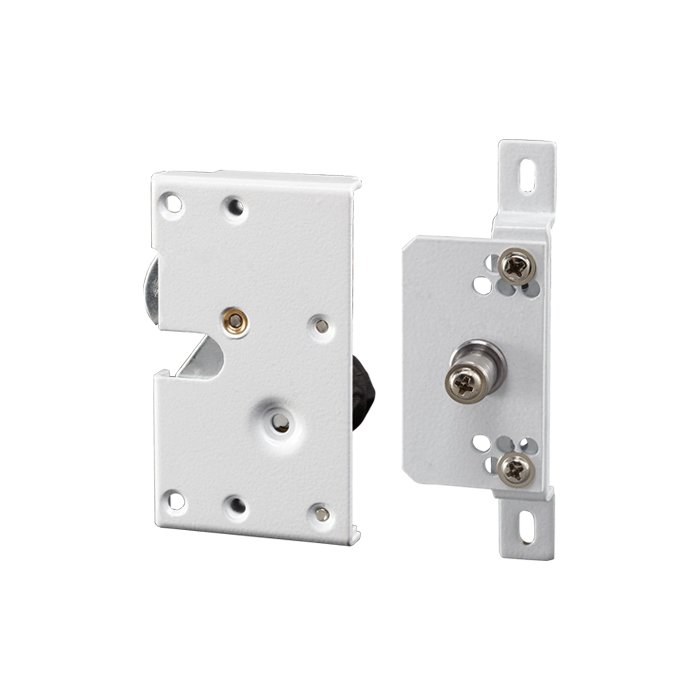

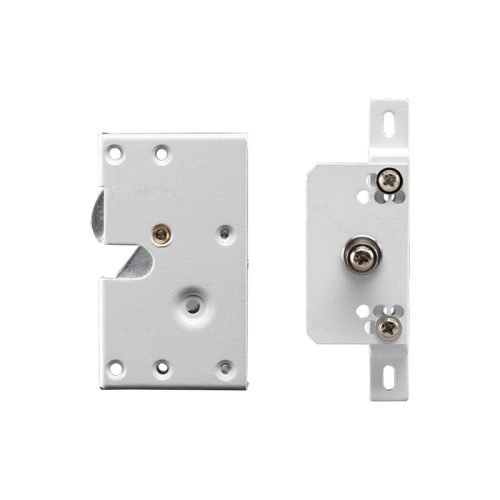

Sliding Rail Door and Window Dedicated Electric Hook Lock

YEH-210 is a dedicated electric hook lock,suitable for hollow metal and plastic-steel doors and windows. Electric hook lock suitables to be installed under work space temperature between -40℃~ +50℃,holding force is larger than 300kg,is a type of dedicated electric hook lock effectively applied to Left and right push-pull sliding rail doors and windows

SKU: YEH-210 Category:

Technical Parameter

Dimension 79Lx45.5Wx34.3H(mm)
Door catch 91Lx30Wx25.85H(mm)
Voltage 12VDC
Current 100mA
Holding Force 300kg
Operating Temp -40℃~+50℃
Operating Humidity ＞95%
Weight 0.35Kg

Advantage

Installed on hollow metal doors, plastic-steel doors and other sliding rail type doors and  windows.
The standard appearance of the structure apply to various brand hollow metal and plastic-steel doors and windows.
The fixed installation parts can be installed on the frame, cylindrical assemblies embeds in the  frame, easy to install.
There are anticorrosion coating protection for Latch bolt components and Lock bolt
The Fail safe feature design, meet with the demand  of emergency exit
The special usage design, during the product life cycle, it don’t need to do preventive maintenance and lubricant, etc

Dimension Diagram
