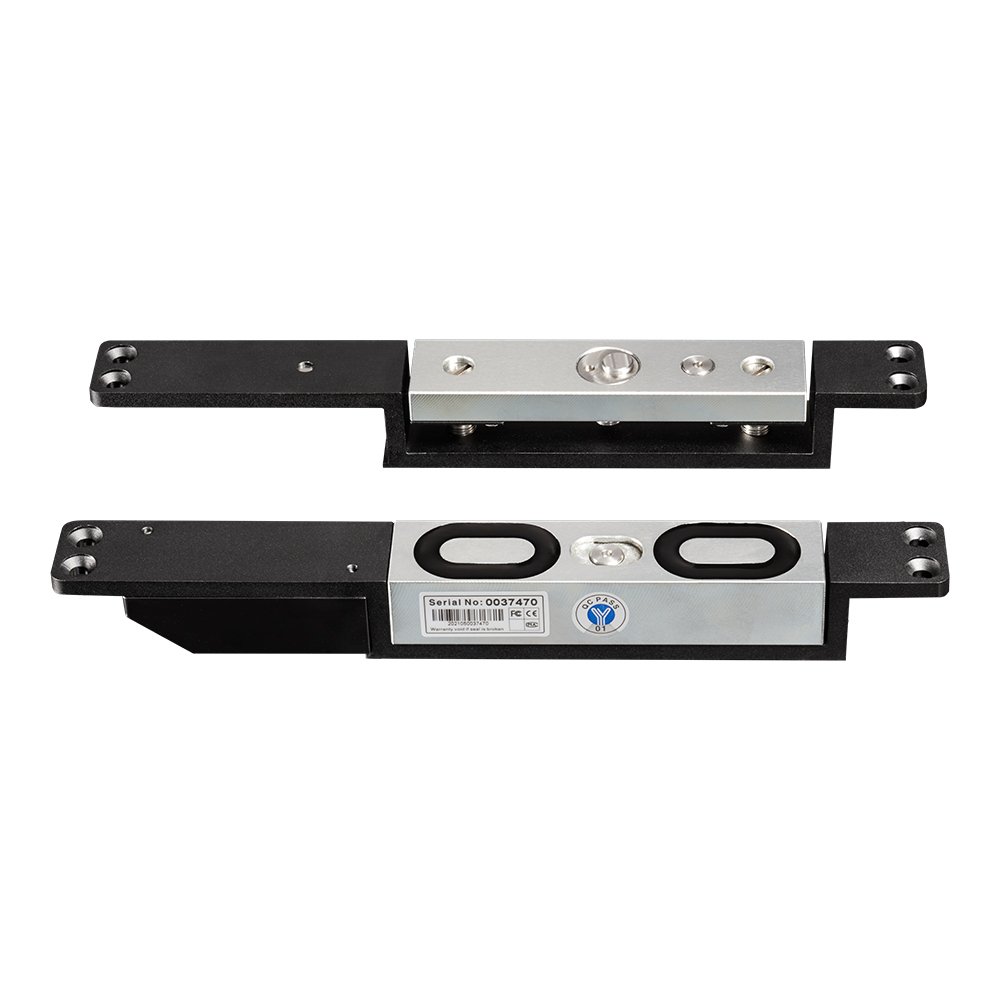

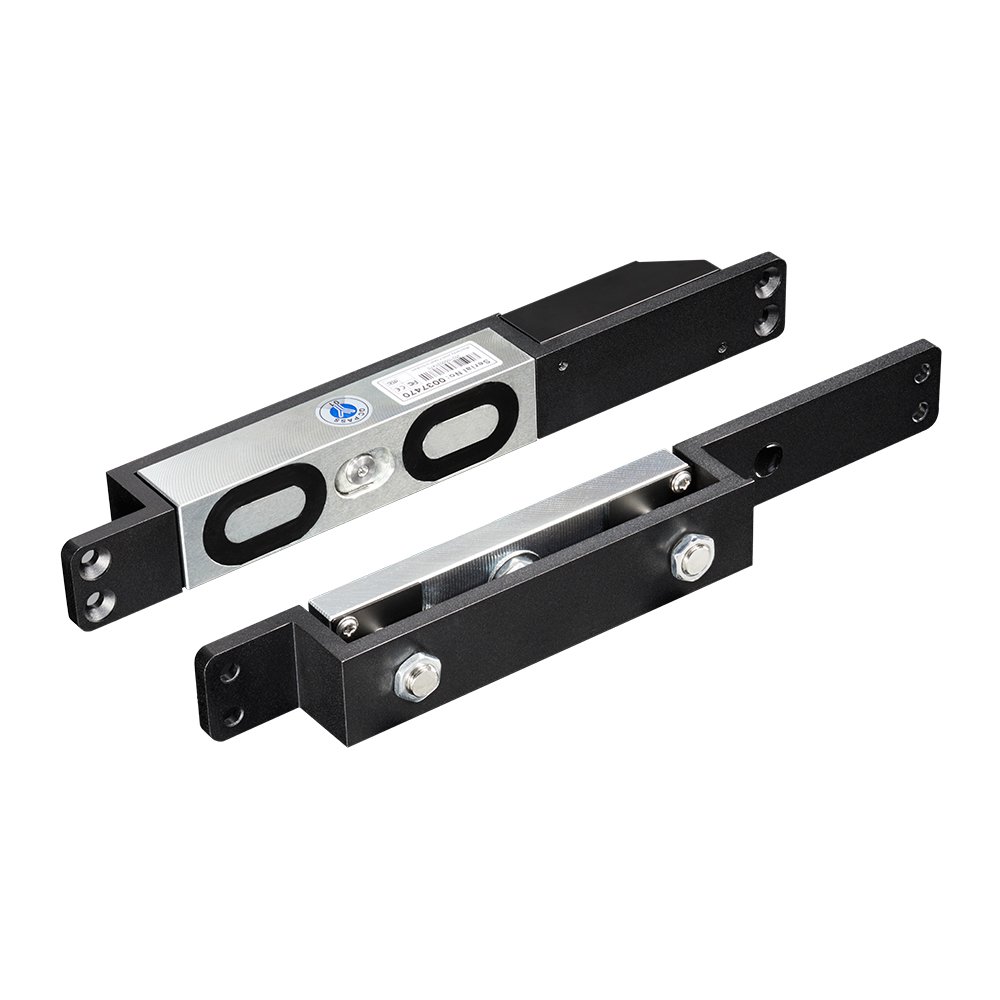

Shear Lock

YM-2500SL is a kind of shearing lock. by using the principle of electromagnetic force to attract the armature plate, and then stuck the two fixed legs into the holes on the armature plate. With combination of the power of electromagnetic force and holding force of the fixed legs, the shear lock can create a very large shearing force.

SKU: YM-2500SL Category:

Technical Parameter

Magnet 265L×30W×30D (mm)
Armature 265L×30W×36.4D (mm)
Voltage 12VDC/24VDC(Adjustable)
Operation Current 1800mA
Standby 500mA
Time Delay 0/5/10/15sec.
Door Sensor Output NO/COM(0.1A@30VDC)
Lock Sensor Output NC/NO/COM(0.1A@30VDC)
Shear Holding Force 1200kg
Door Gap 2.5mm
Weight 1.782kg

Advantage

For double swing doors
Suitable for 90 or 180 degrees double swing doors
Relock function
When the lock is unlocked, it will lock the door automatically according to the program.
Smart circuit design
With time delay function, door signal output and lock signal output
All-metal lock body
With integral profiles and precise work, this lock is stronger and more durable.
Ultra durable electromagnetic design
Professional and durable electromagnetic design with over 500,000 times qualified test.
One-piece and small size
One-piece design and small size, which will be easy to install to any kinds of door frame
With both magnetic and latch design
By using electromagnetic force and latch design, the holding force of this shearing lock can achieve up to 1200kg
Armature plate with guide groove
With guide grooves at both sides of the armature plate
Door/lock status sensor
A set of NO/COM door signal output contact and a set of NO/NC/COM lock signal output contact

Dimension Diagram
