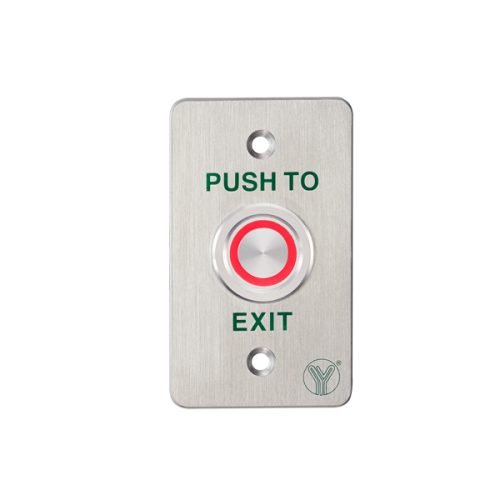

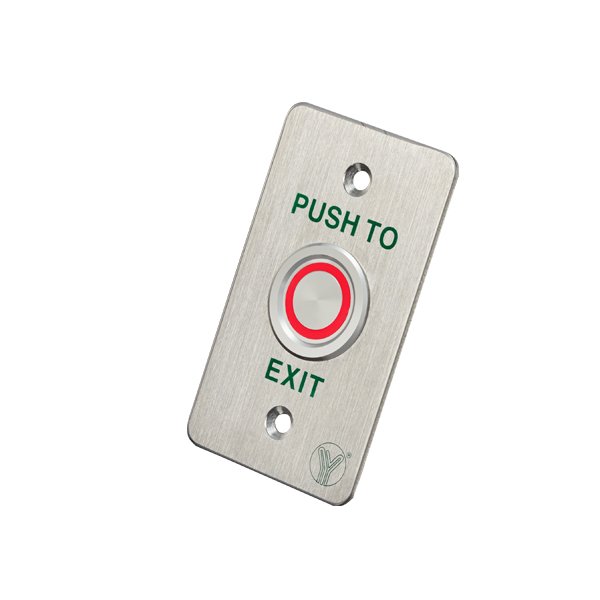

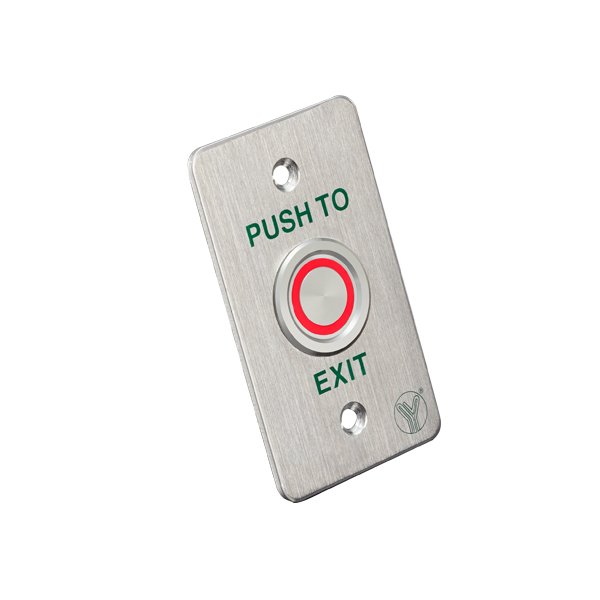

Piezoelectric Exit Button(Stainless steel)

PBS-820B(LED) is a Piezoelectric Exit Button(Stainless steel) with LED in size of 86Lx35Wx20H(mm)suitable for all kinds of locks with feature of waterproof.

SKU: PBS-820B(LED) Categories: ,

Technical Parameter

Dimensions 86Lx50Wx20H(mm)
Voltage 12V
Current Standby 20mA
Output Contact NO/COM
Current Rating 1A@30VDC 0.5A@125VDC
Operating Temperature Operating Temperature
Operating Humidity 0%~99%
Waterproof Level IP-68
Wire color Red: Positive Black: Negative
LED Status RED:Standby GREEN:Operation
Weight 0.18kg
Certificate CE-EMC CE-LVD FCC-VOC REACH WEEE

Advantage

Stainless steel Panel with Elegant Style.
100000 Cycles tests.
Three Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

Dimension Diagram
