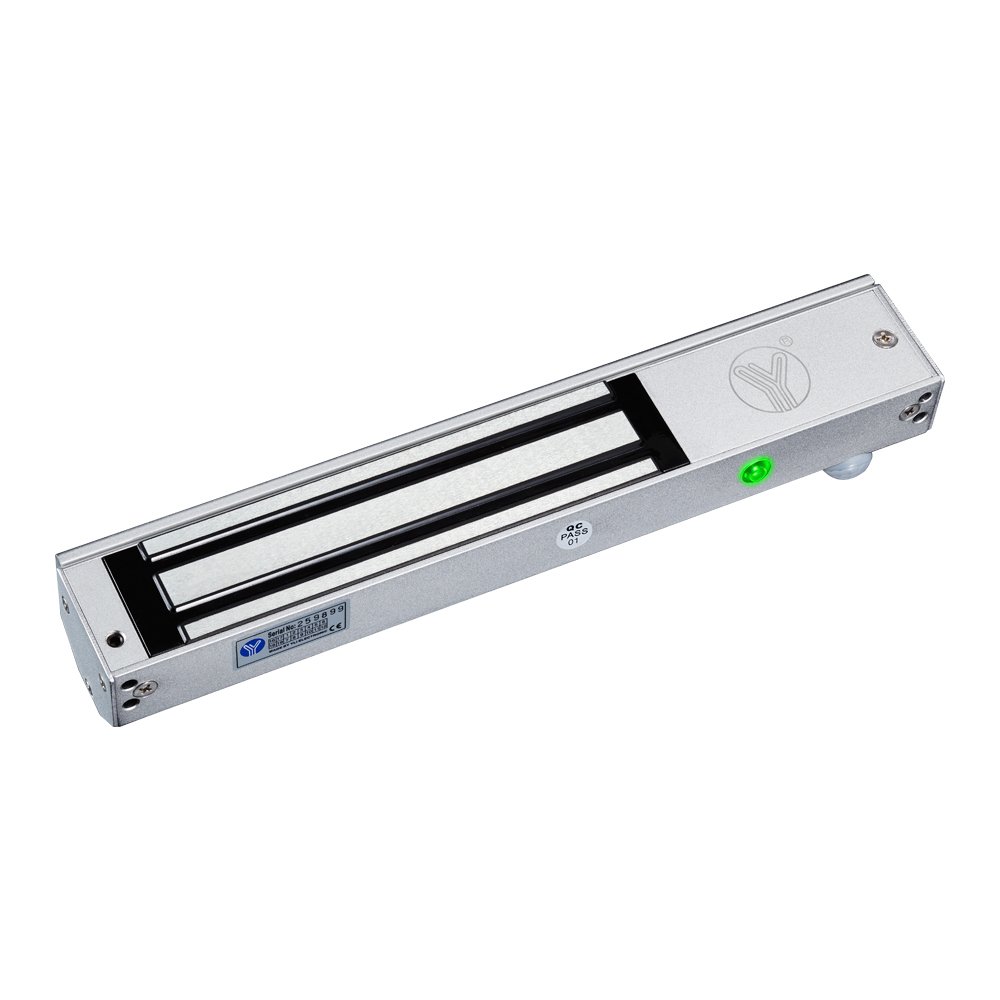

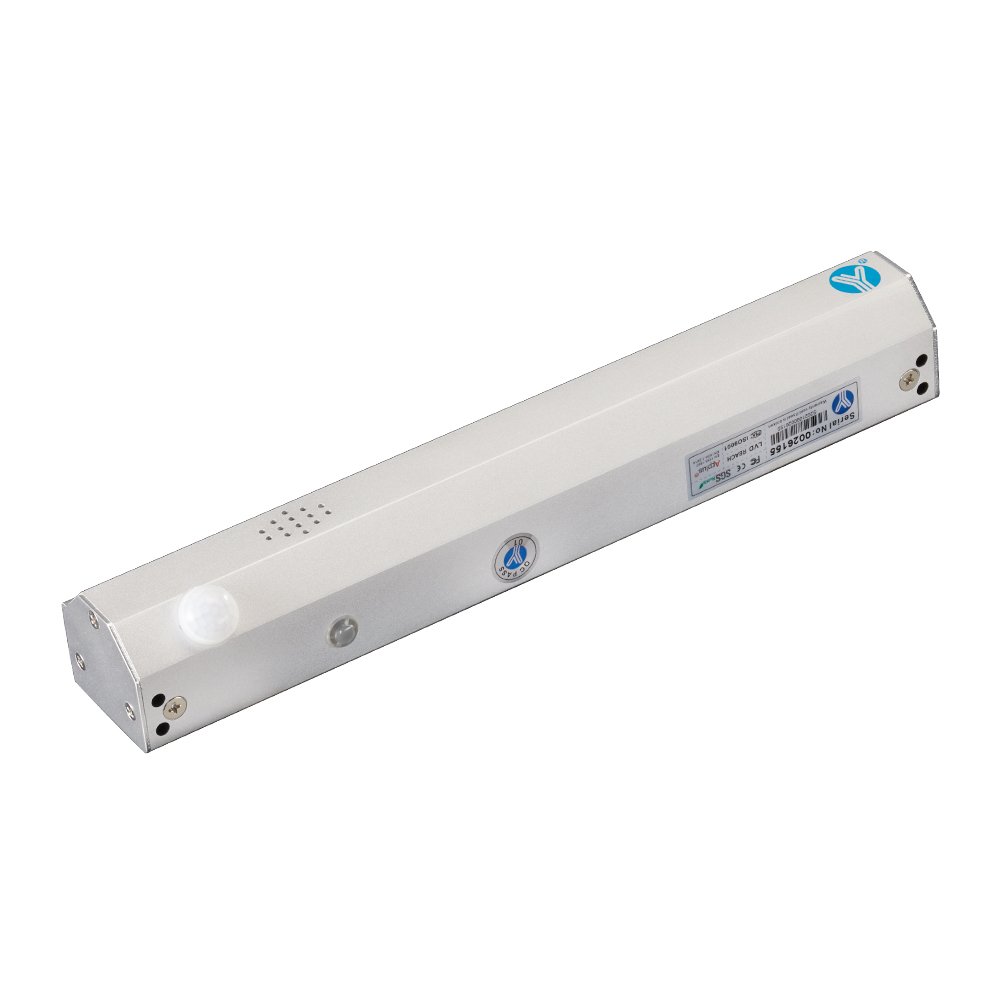

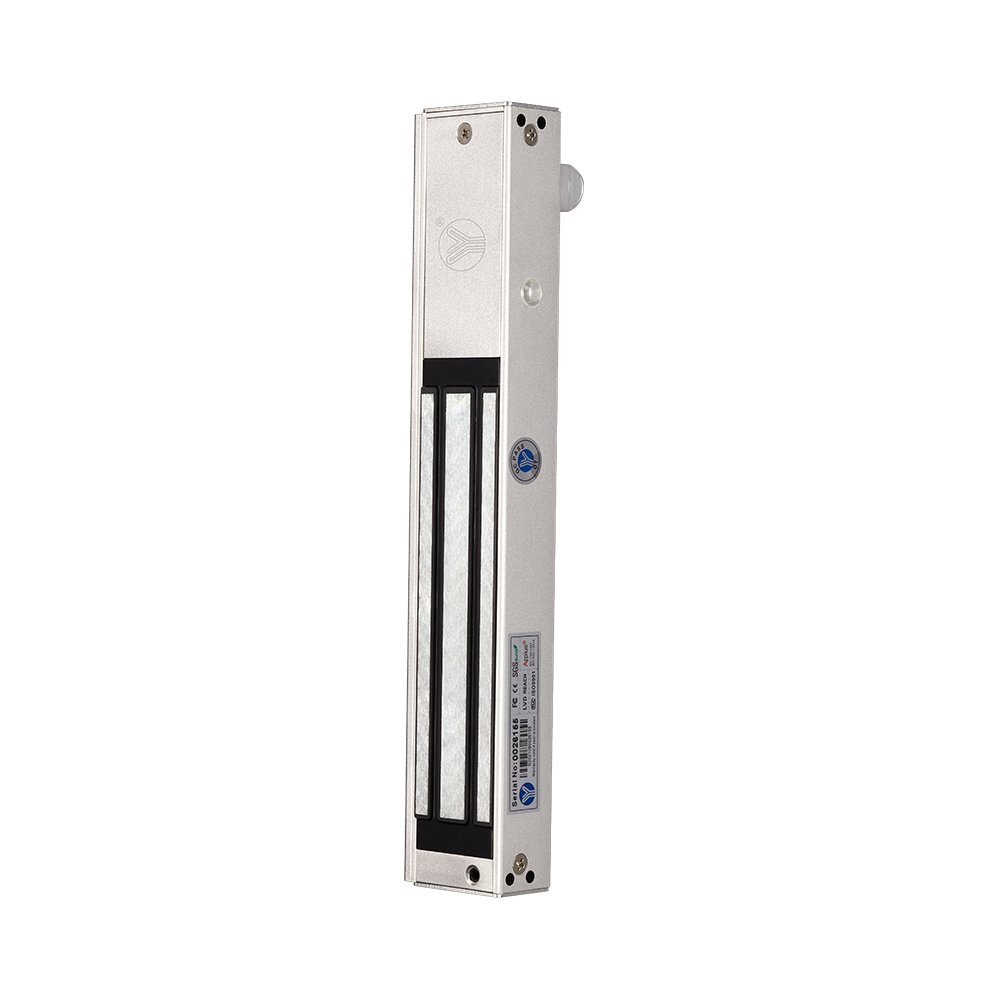

Infrared Sensor Single Door Magnetic Lock with Voice Prompt Function

YM-280IS(LED)-VP is a new type of single door Electromagnetic Lock with the infrared induction automatic unlock function,Due to it can improve the efficiency of Access control automation effectively,it’s widely used in Emergency Exit of intelligent building,residential community, shopping center, airport, HSR station, subway station, the grand theatre and so on.

SKU: YM-280IS(LED)-VP Categories: ,

Technical Parameter

Size 283Lx48.8Wx39.9H(mm)
Armature Plate Dimension 180Lx38.8Wx13.2H(mm)
Input Voltage DC12V (Adjustable DC24V)
Current 12V/500mA(±10%) ; 24V/250mA(±10%)
Holding Force 280kg(600Lbs)
Signal Output Lock signal(NO/NC/COM)
LED Red shows locked ;Green shows unlocked
Time Delay 3/6/9/12sec adjustable
Voice Prompt Voice prompt when opening the door
Suitable for Wooden door , Glass door ,Metal door , Fireproof door
Detection range 3m
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Humidity 0~95%(non-condensing)
Patent Number ZL2018200625270
Weight 2.6kg
Certificate MA CE-EMC CE-LVD FCC RoHS REACH WEEE

Advantage

Voice prompt when opening the door
Infrared sensors device, 3 meters detection distance
130 degrees of infrared human induction angles
High brightness LED displays the status of an electric lock
Dual voltage 12 or 24 VDC(optional)
Signal output of lock, NO/NC/COM
High strength magnetic lock cylinder designed; Strong electromagnetism force
The latest industrial design,safety and steady

Dimension Diagram
