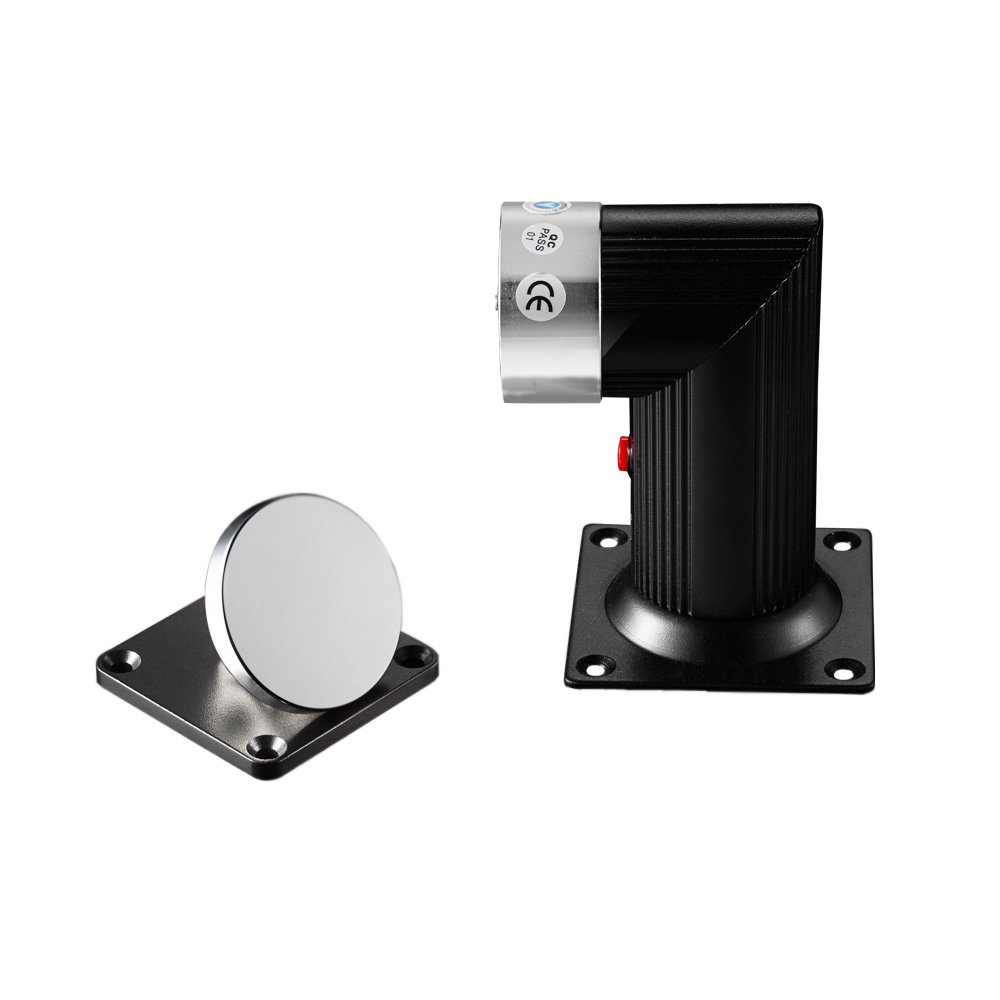

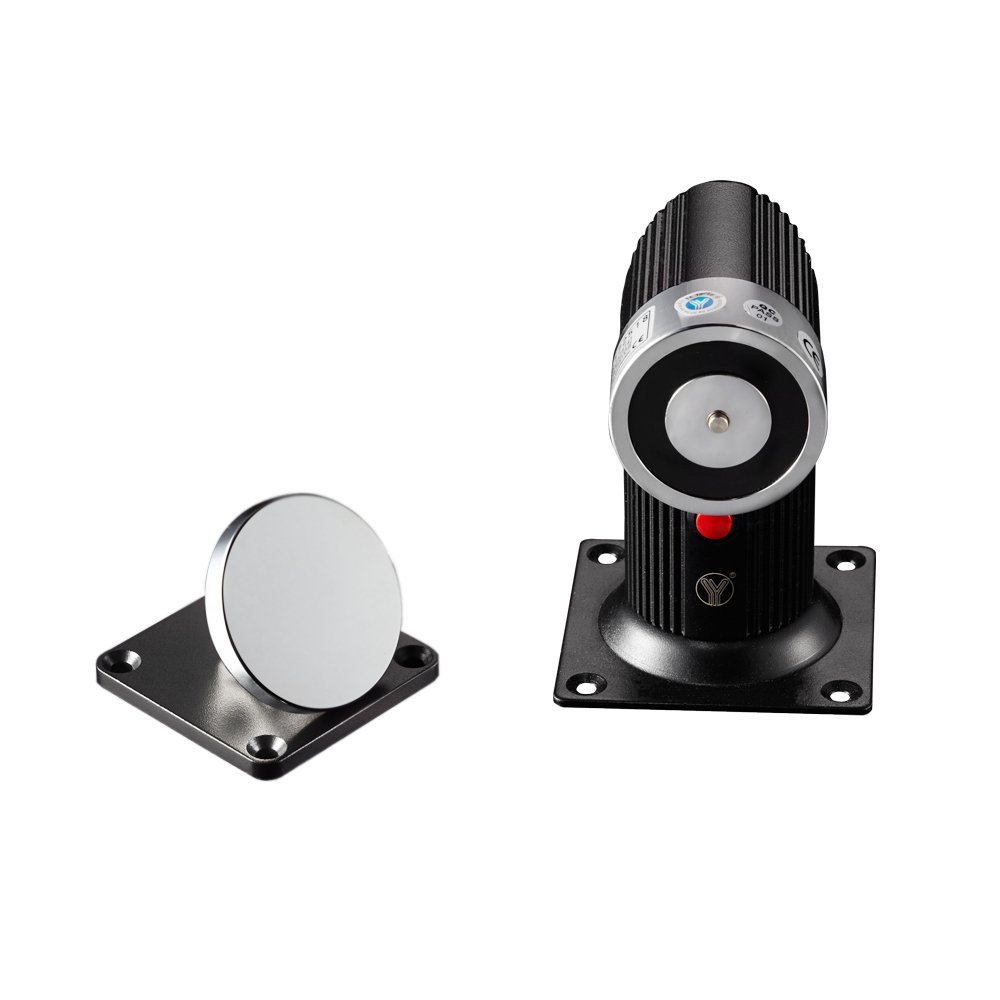

Floor Mount Door Holder

YD-606 is a floor mount door holder .The feature of low power consumption, that makes it more environment friendly and more durable. It contains build-out release button for testing and build-in MOV which .

SKU: YD-606-S Categories: ,

Technical Parameter

Dimensions L80xW80xH120(mm)
Holding Force 50kg(110Lbs)
Voltage Factory Default：24VDC，12VDC(Adjustment)
Signal Output NO（Green）/NC（Yellow）/COM(White) YD-606-S
Current Draw 12V/140mA 24V/70mA
Optional The Hand Moves and Closes the Door to Release the Button
Suitable for All Kind of the Single & Double Smokeproof Door
Surface Temp ≤+20℃
Operating Temp -10～+55℃(14-131F)
Suitable Humidity 0~90%(non-comdensing)
Finishes for Shell High Temperature Paint and Environmental Protection
Finishes for Armature Zinc
Weight 1.05kg
Certificate MA CE-EMC REACH WEEE

Advantage

Col linear Load: 50kg, 110pounds.
The Standard Voltage is 24VDC when finished.
MOV Provides Reverse Current Protection.
Low Power Consumption, Environmental Protection.
Anti-Residual Magnetism Design.
Professional Design, Dual Insulate Housing.
Automatically close the smoke proof door when fire happens.
Manual door release button.
CE Certificate.

Dimension Diagram
