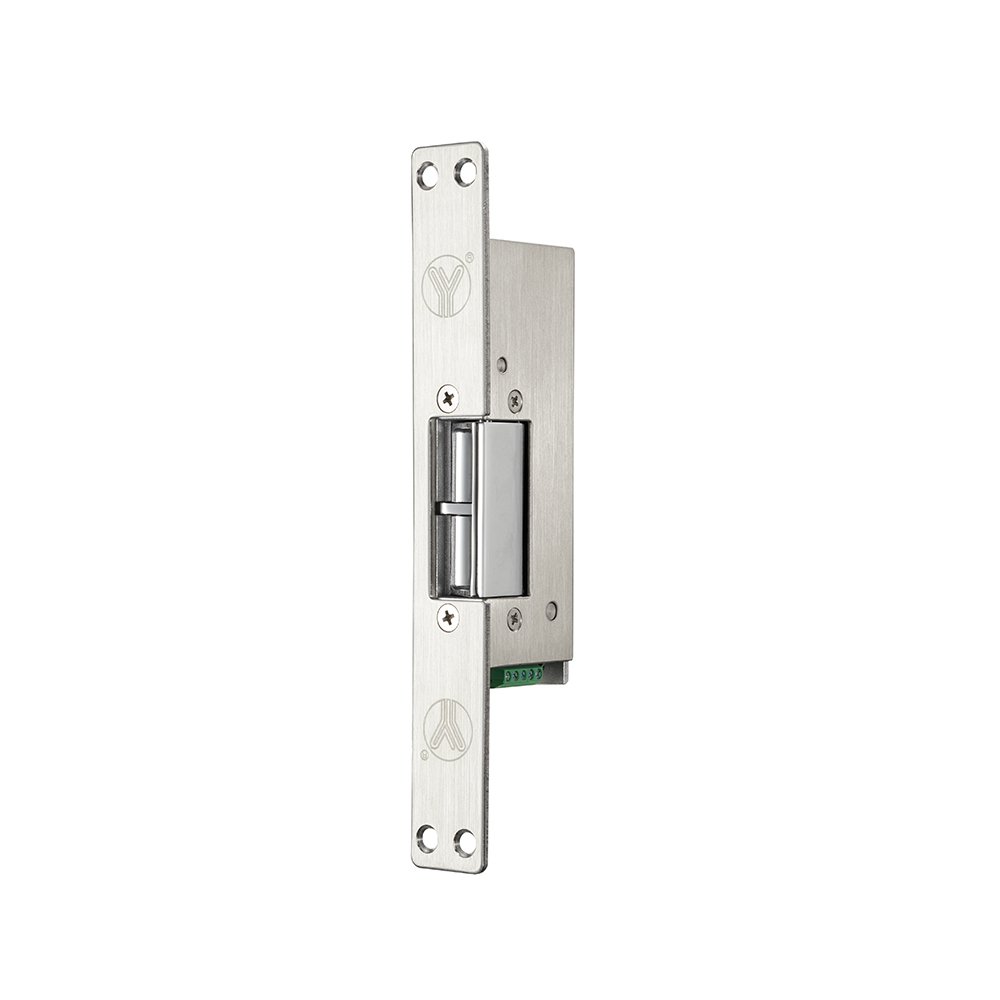

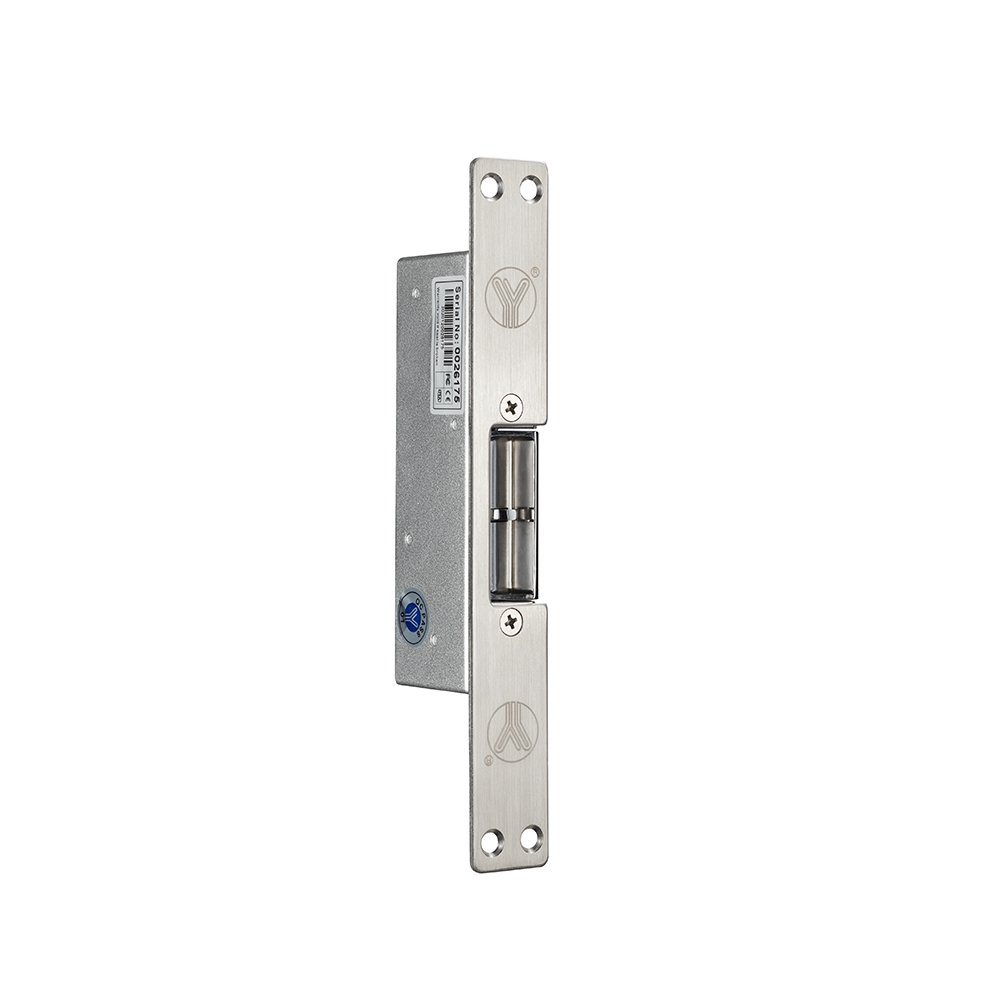

Electric Strike with Preload Release Function

This electric strike lock is designed for wind pressure resistant.Special design,easy to adjust the distance of the Lock-tongue.Designed for Metal Frame drill a hole,then install it directly.Testing to 250000 cycles.High-Temperature Painted,Durable and Beautiful Art.

SKU: YS-135NC-S Category:

Technical Parameter

Dimension 195 Lx25WX42.5H(mm)
Keeper Thickened Zinc Alloy
Preload 200kg
Static strength 400kg
Voltage DC12V （Available DC24V）
Current 12V/260mA(±10%) ; 24V/130mA(±10%)
Signal output NO/NC/COM lock signal output
Suitable For Wooden door; Metal door;PVC door
Surface Temperature Lower than room temperature +20℃
Operating temperature -10~+60℃(14-131F)
Humidity 0～95%(non-condensing)
Finishing High Temperature Lacquer
Weight 0.5kg

Advantage

Holding 400kg.

Special design,easy to adjust the distance of the Lock-tongue.

Designed for Metal Frame drill a hole,then install it directly.

Testing to 2500000 cycles.

High-Temperature Painted,Duable and Beatiful Artical.

CE Certificate by European Union, MACertificate by China Public Security office.

Dimension Diagram
