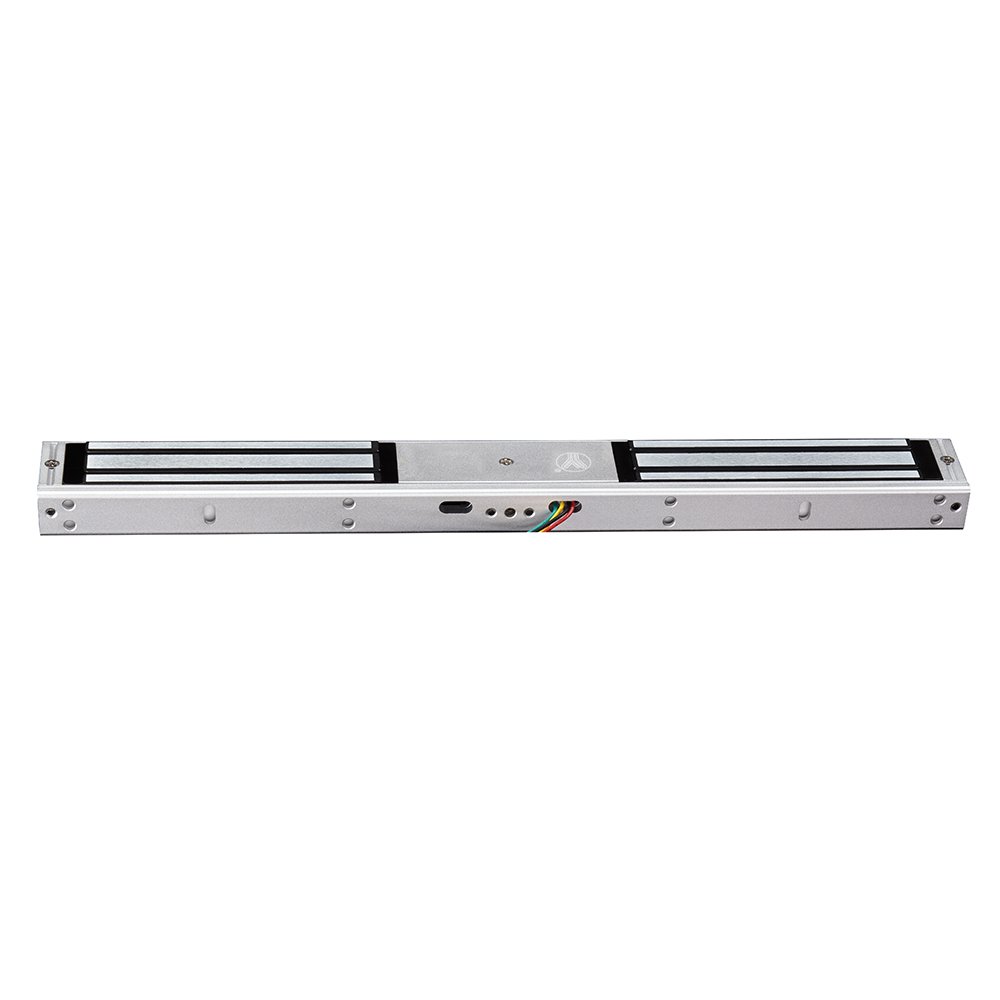

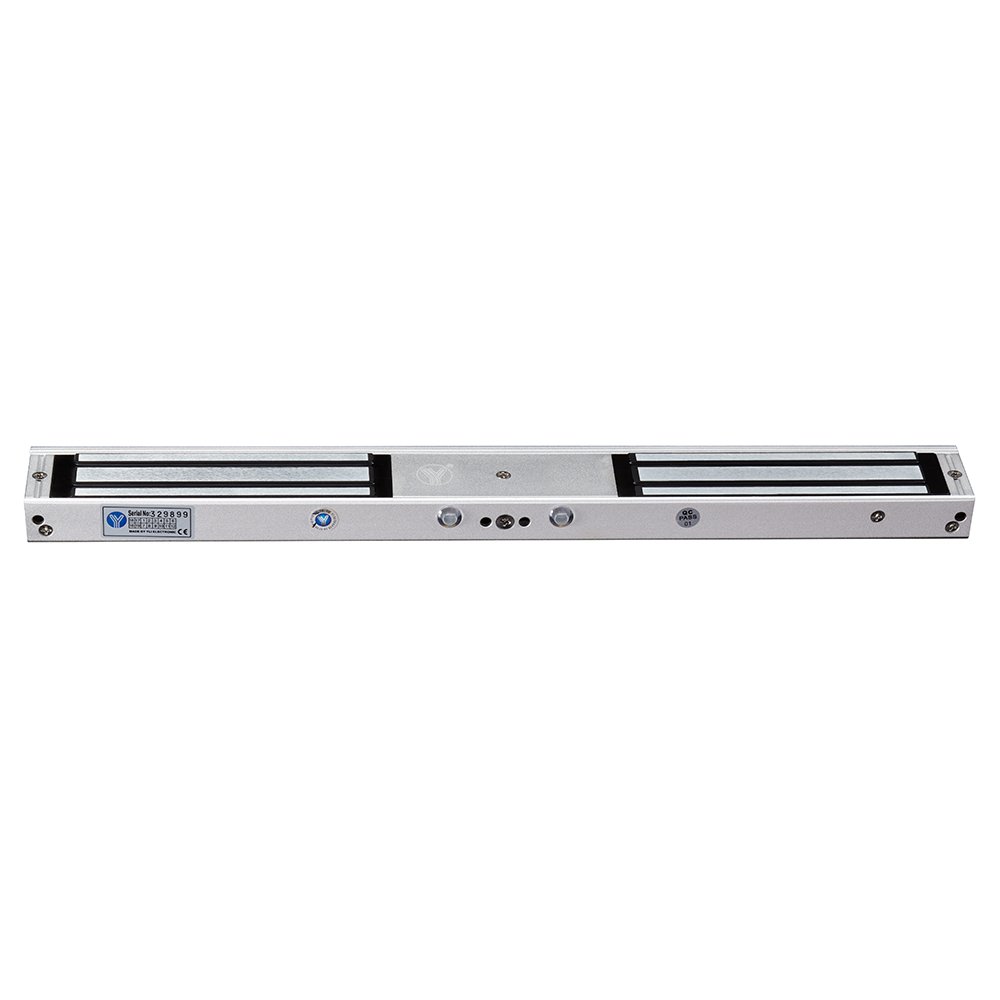

Double Door Magnetic Lock(LED)

Magnetic lock with 350lbs holding force for single door ,like glass door, wooden door, fireproof door, sliding door and metal door. It is also with LED indicator.

SKU: YM-180ND(LED) Categories: ,

Technical Parameter

Size 185Lx41.8Wx22.4H(mm)
Armature Plate Dimension 130Lx32x10H(mm)
Holding Force 180kg(350Lbs) *2
Input Voltage DC12V (Adjustable DC24V)
Current 12V/400mA(±10%) *2 ；24V/200mA(±10%) *2
LED Red shows locked ;Green shows unlocked
Signal Output Lock signal(NO/NC/COM)
Suitable Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp ≤+20℃
Operating Temp -20℃~+55℃(-4—131°F)
Cover Finish Anodized aluminum
Humidity 0~95%(non-condensing)
Weight 2.4kg
Certificate MA CE-EMC CE-LVD FCC RoHS REACH WEEE

Advantage

Collinear Load Test 180kg,350pounds *2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM)
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

Dimension Diagram
