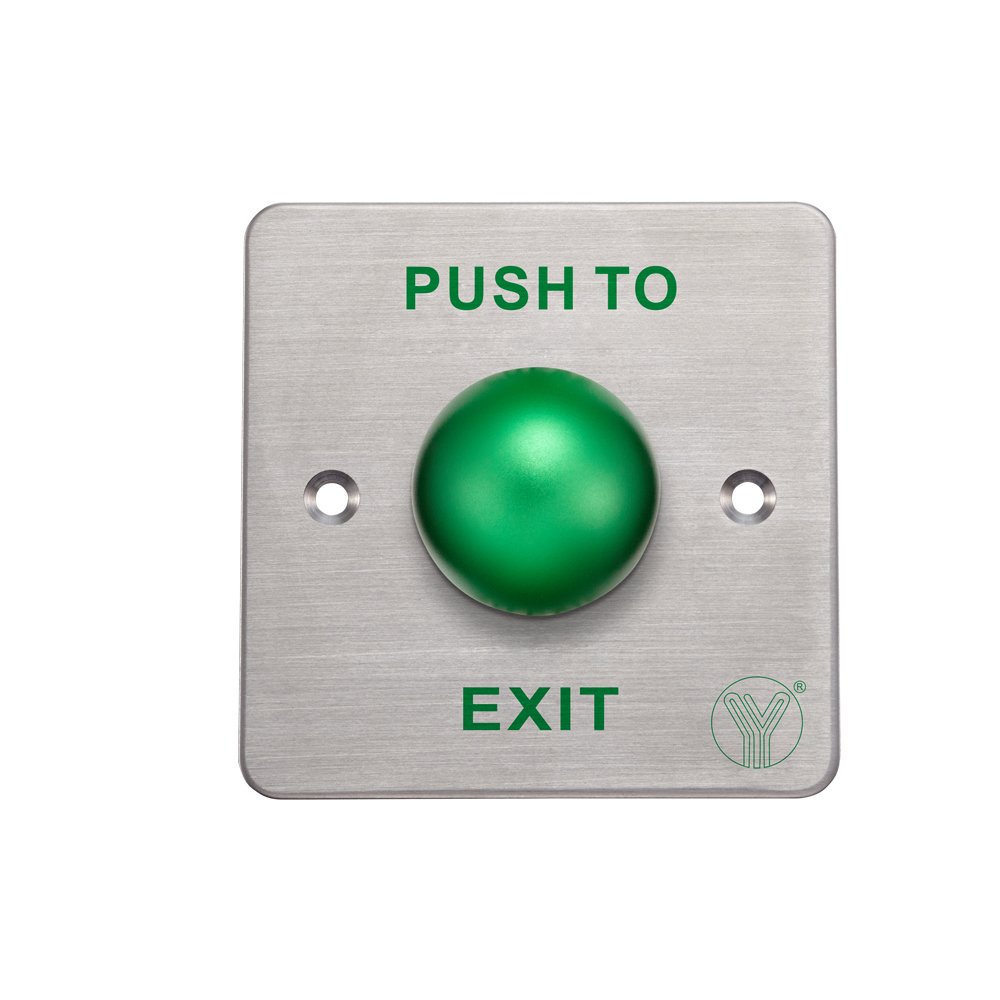

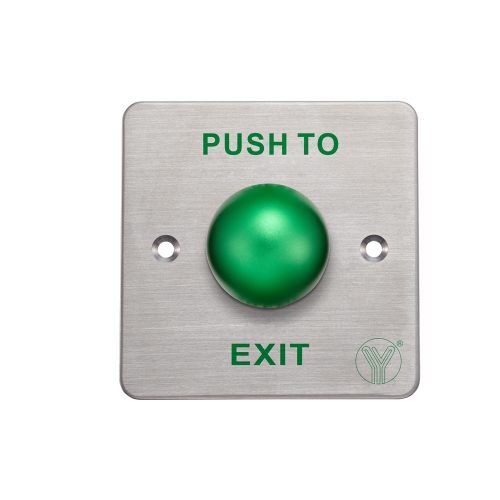

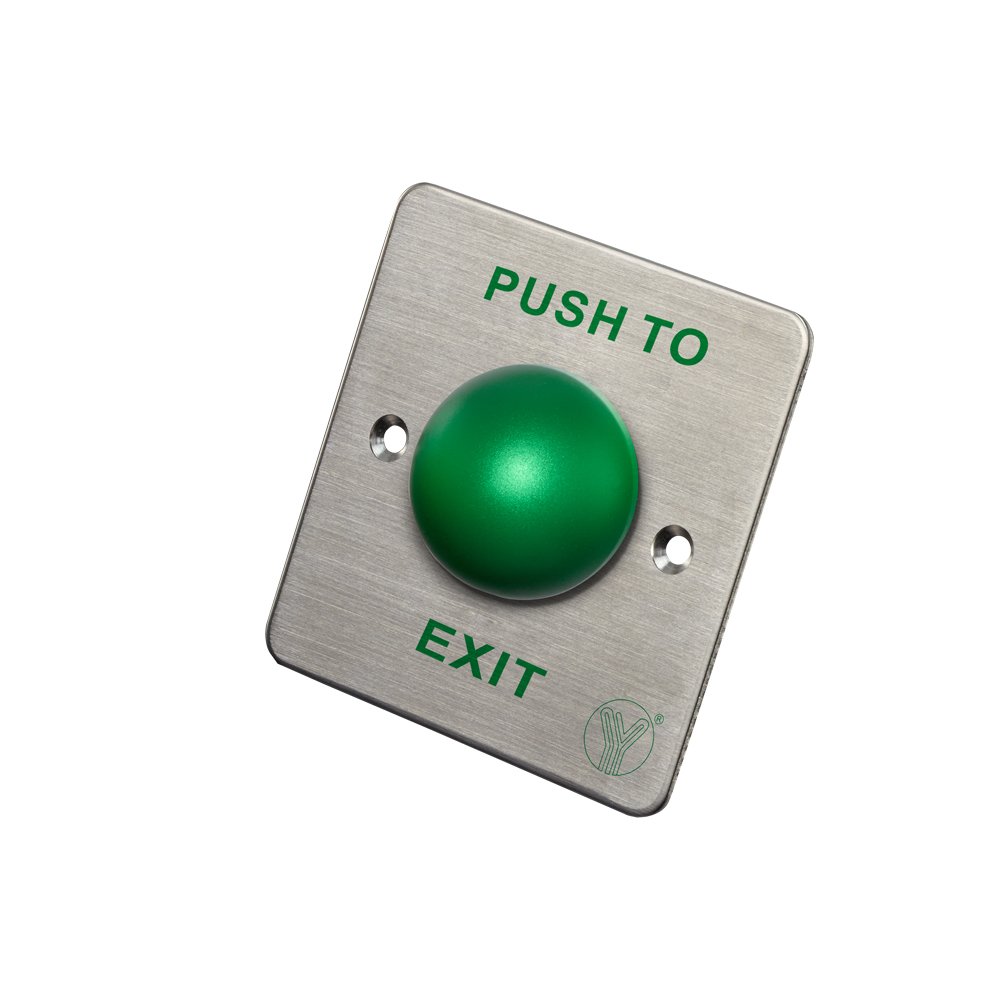

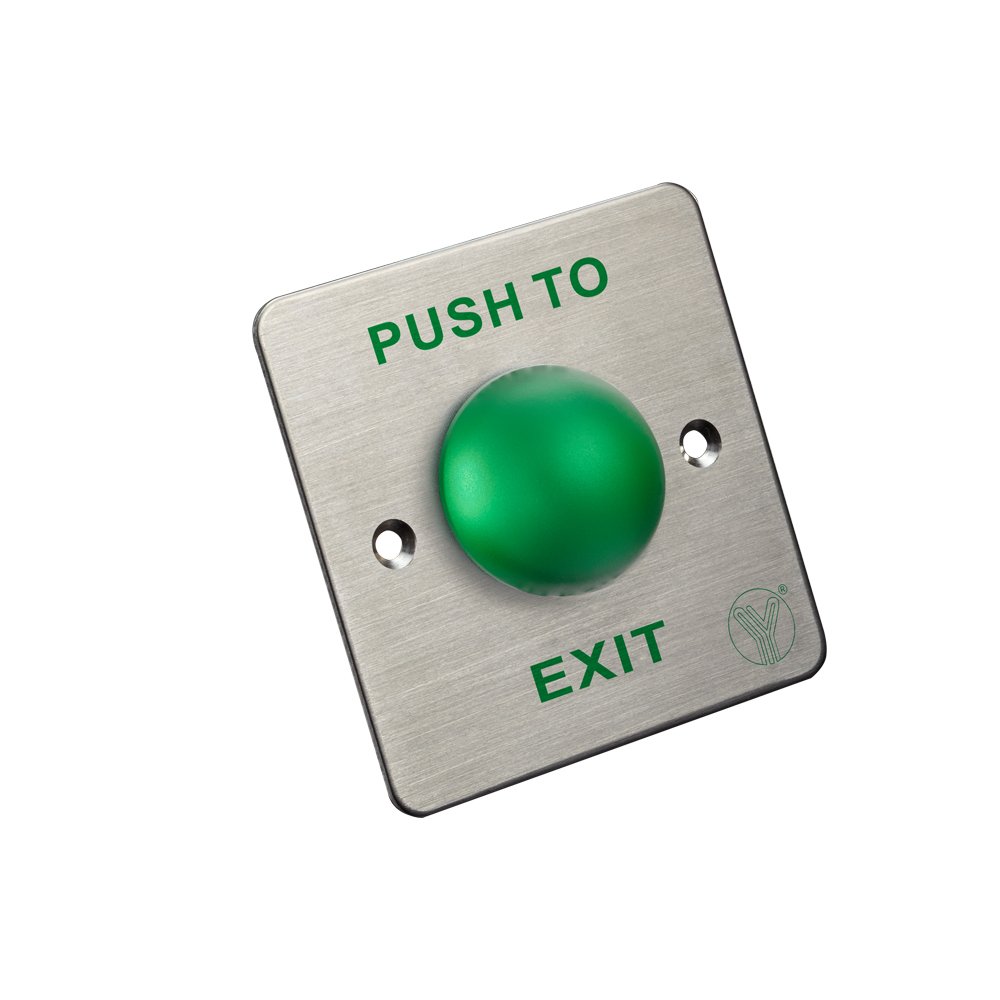

Door Release Button (Waterproof)

PBK-818B is a door release button with stainless steel palte with size of 86Lx86Wx40.1H(mm), with green color which is conspicuous in public places.

SKU: PBK-818B-WP Categories: ,

Technical Parameter

Dimensions 86Lx86Wx40.1H(mm)
Standard structure 304 stainless steel panel with metal button
Current rating 3A@36VDC Max
Output contact NO/NC/COM
Mechanical life 100000 tested
Waterproof Level IP67
Suitable for door All kinds of doors
Operating temp 10～+55(14-131F)
Operating humidity 0-95% (relative humidity)
Panel Material 304 stainless steel panel with wiredrawing finish
Weight 0.2kg
Certificate CE-EMC CE-LVD FCC-VOC RoHS REACH WEEE

Advantage

Design with no Mechanical Bolt.
Aluminum Panel with Elegant Style.
With the Bottom Box, Easy to  Install.
100000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

Dimension Diagram

Reviews

There are no reviews yet.

Be the first to review “Door Release Button (Waterproof)”

Related products

European Standard Waterproof Exit Button

Model: YWP-881B(LED)

Door Release Button(Resetting Function)

Model: CPK-861C

Door Release Button With LED (stainless steel)

Model: YKS-850LM

European Standard Waterproof Key Switch for Rolling Door

Model: YKS-853B(EN)

European Standard Waterproof Exit Button with Key Switch

Model: YKS-852A(EN)

Mini Zinc Alloy Box

Model: MBB-811A-M

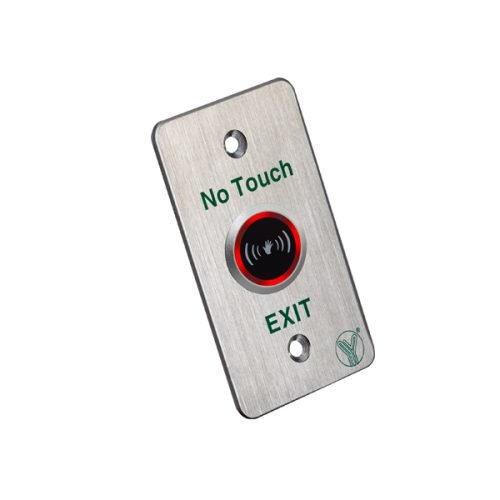

Infrared Sensor Exit Button
