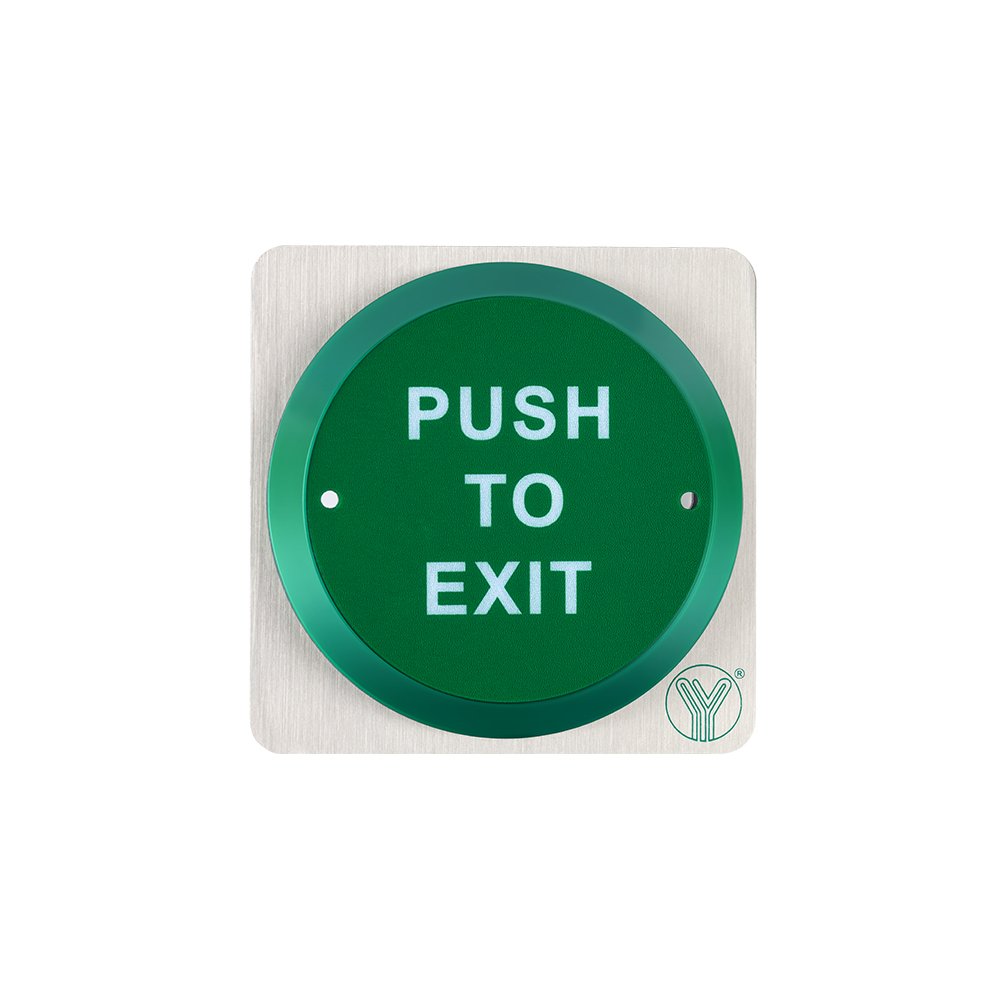

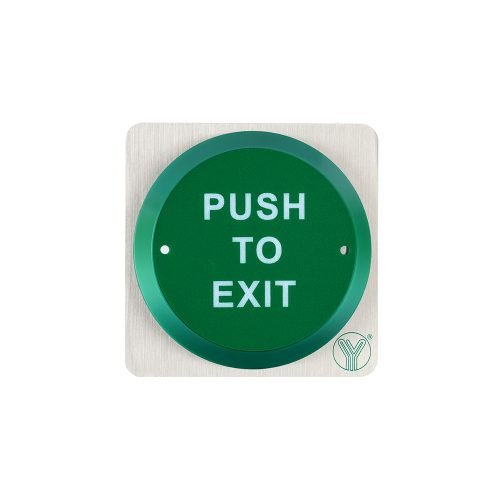

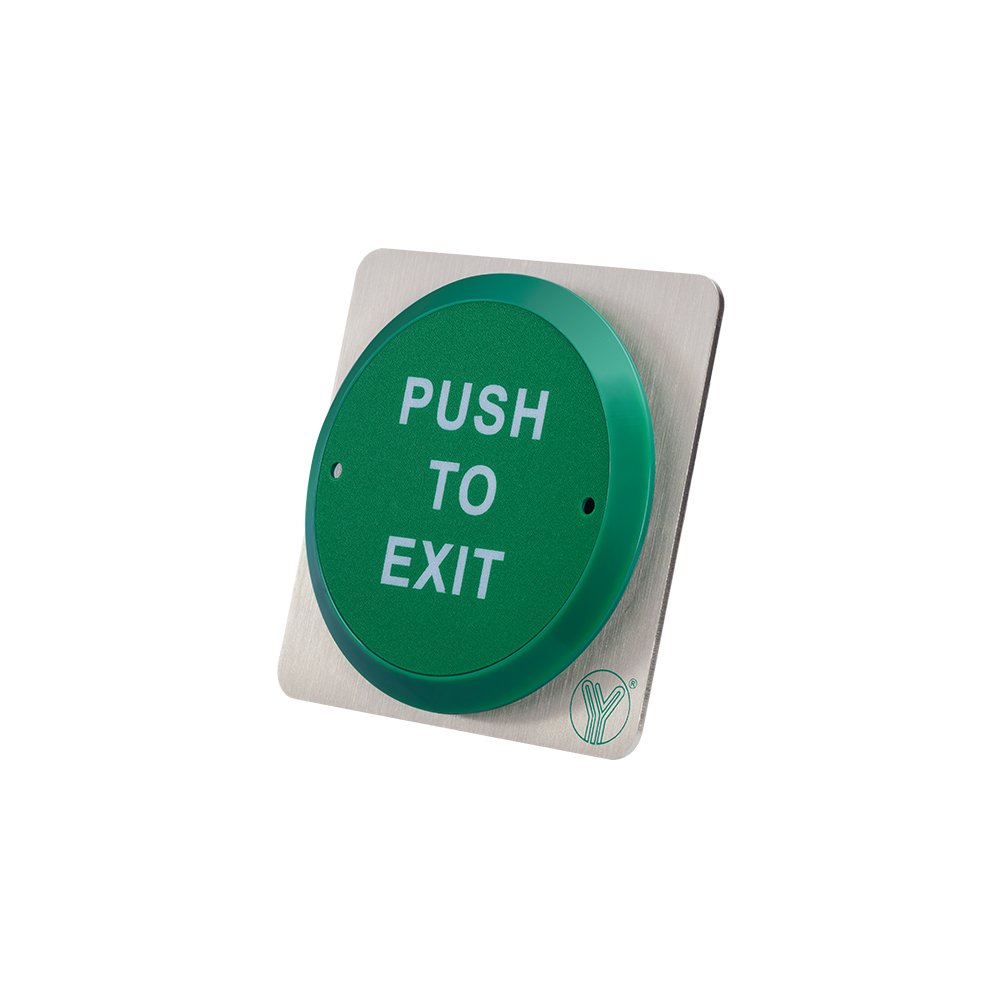

Door Release Button

PBK-819A is a door release button with stainless steel palte with size of 86Lx86Wx30.8H(mm), which can be match use with back box.

SKU: PBK-819A Categories: Exit Button, Push Button

Reviews (0)

Technical Parameter

Dimensions	86Lx86Wx30.8H(mm)
Standard structure	Stainless steel
Current rating	30VDC 1A
Output contact	NO(Green),NC(Yellow),COM(White)

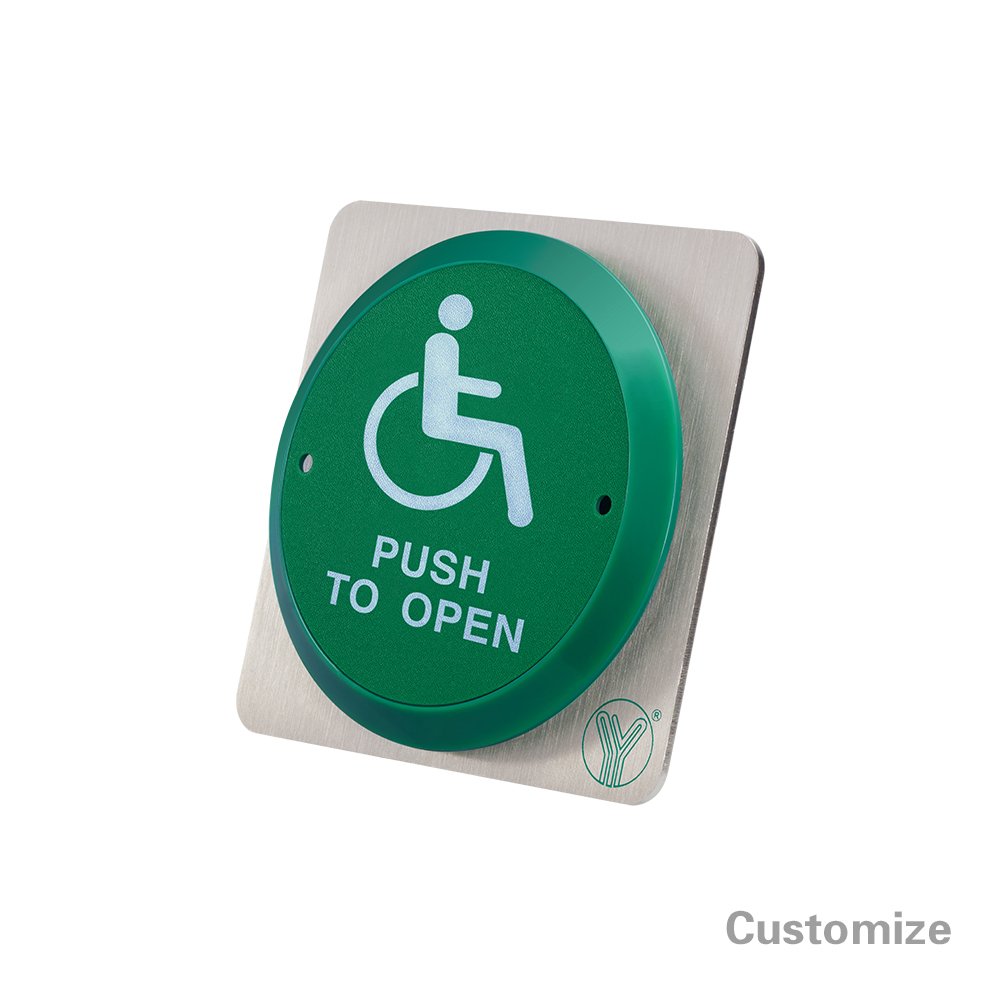

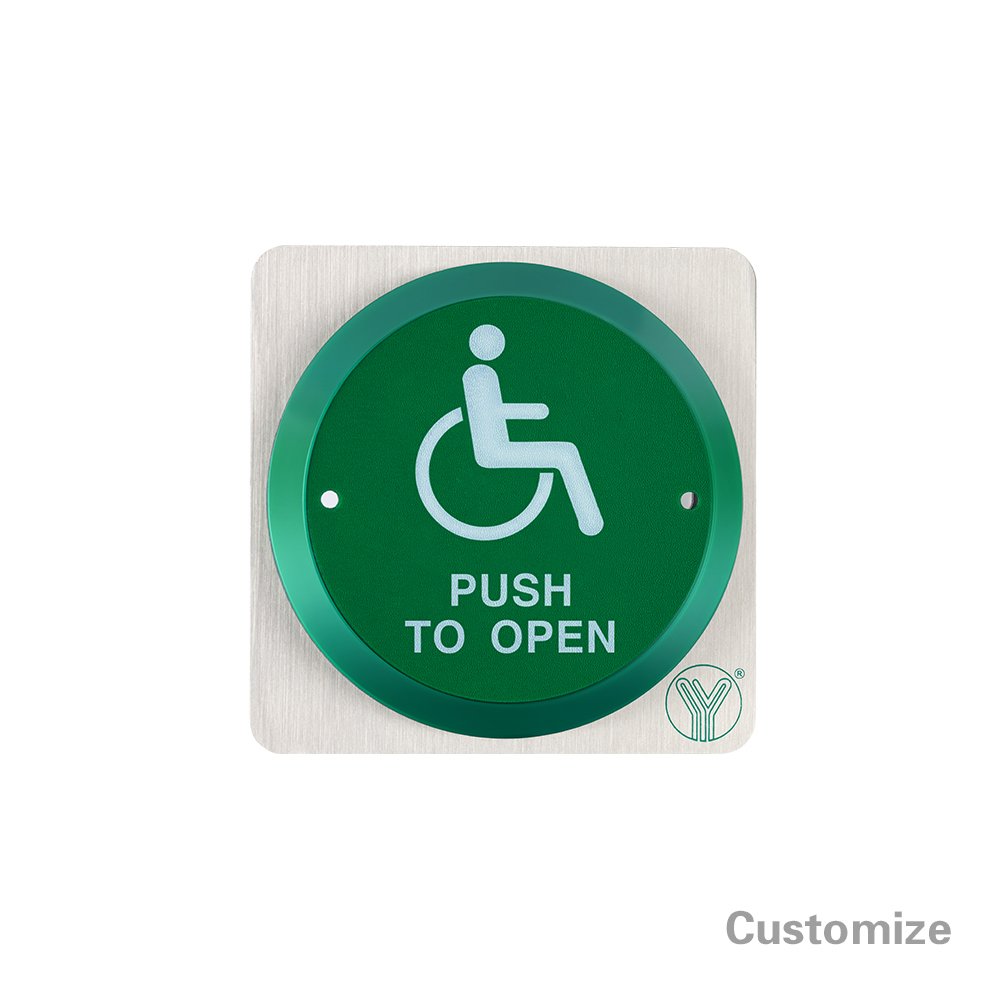

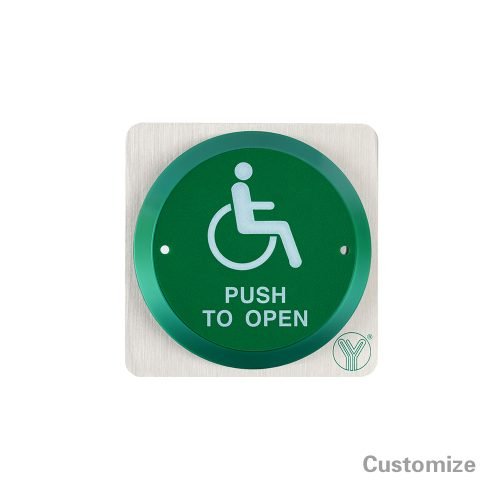

Button pattern	Can customize the disabled pattern button (Figure 4)
Operating temp	-20℃ ~ +60℃
Operating humidity	0-95% RH
Panel Material	304 stainless steel panel with wiredrawing finish
Weight	0.2kg

Advantage

Design with no Mechanical Bolt.
Aluminum Panel with Elegant Style.
With the Bottom Box, Easy to Install.
100000 Cycles tests.
Two Contact Output,Suitable for all kinds of Locks.
The Best Choice for Access Control.

Dimension Diagram
